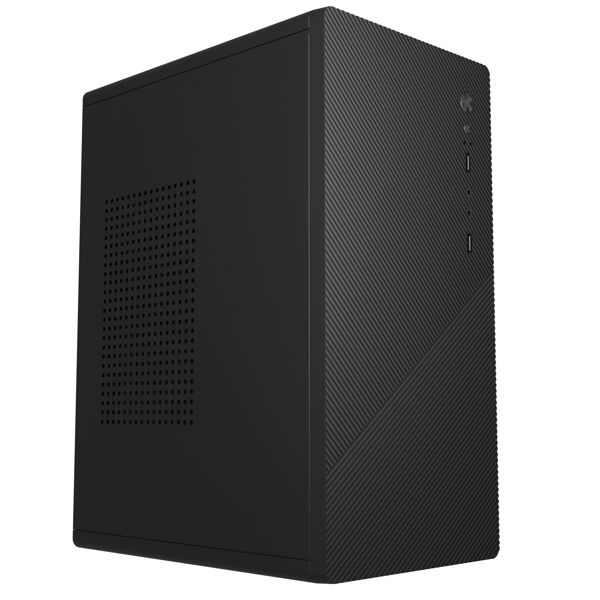

კომპიუტერის კომპონენტები
ბრენდი: ALLX
მოდელი: AX-B1635
პროდუქტის ტიპი: კომპიუტერის ქეისი
დედა დაფა: MATX / ITX
მასალა: 0.35mm SPCC
გაფართოების სლოტი: 3
VGA კლირენსი (სიგრძე): 200 მმ
CPU კლირენსი (სიმაღლე): 140 მმ
კვების წყაროს პოზიცია: ქვედა
Fan support
ზედა: არა
გვერდი: არა
წინა: არა
ქვედა: არა
უკანა: 1 x 80 მმ
შემავალი/გამომავალი პორტი
USB1.0*2+P+R
დისკის ჩასადები
3.55'"HDD*1
2.5" SDD*1
წყლის გაგრილების მხარდაჭერა
ზედა: არა
უკანა: არა
მარცხენა მხარეს პანელი: მეტალი
წმინდა წონა (კგ): 1.3
მთლიანი წონა (კგ): 3.25
შასის ზომები: 236(L) x 168(W) x 335(H) მმ
პროდუქტის ზომები: 248(L) x 168(W) x 338(H) მმ
ფერი: შავი
მხოლოდ ქეისი — ქულერები არ მოყვება.
Type for PC
Power
Power 1000 W
Form factor ATX /Ver.3.1
Characteristics
PFC type active
Number of fans 1
Fan diameter 120 mm FDB
Efficiency 90% Max, 115VAC, Typical Load
80 PLUS Certificate gold
Input voltage 100 V - 240 V
Input current 12 A - 6 A
Frequency 50 Hz - 60 Hz
Combined load 3.3V 20A; +5V 20A; +12V 83.33A, -12V 0.3A, +5VSB 3A
Power connectors
Modular connection system ico-check
Connectors 1 x MB 24(20+4) Pin, 600+20mm
2 x 8(4+4) Pin 700+20mm
1 x (12+4) Pin 12VHPWR 600+20mm
12 x SATA, (500mm+150mm+150mm+150mm+150mm)*3
3 x Molex, 500+20mm
4 x 8(6+2)*2 Pin PCI-E, 550+20mm +8(6+2)*1 Pin PCI-E, 550+20mm+8(6+2)*1 Pin PCI-E, 550+20mm
Additionally
Security UVP (Undervoltage Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
OPP (Overload Protection)
OTP (Overheat Protection)
OCP (Over Current Protection)
Certificates CE
CB
cTUVus
EAC
RoHS
TUV
Physical
Dimensions (HxWxD) 86 x 150 x 140 mm
Weight 2.6 kg
Gross dimensions
Width 130 mm
Height 210 mm
Length 300 mm
Weight 2.70 kg
Volume 0.0082 m3
Description Power supply Zalman Teramax II SE (1000W) 89%, 80+ Gold, 120mm, 1xMB 28pin (18+10), 2xCPU(4pin+ 4pin), 3xMolex, 12xSATA, 4xPCIe 8pin(6+2), 1xPCIe GEN5 16pin, Fully Modular
Features of the Zalman TERAMAX TMXII SE series power supplies:
Certification :
Cybenetics ETA GOLD
has an ETA Gold efficiency rating, which means a guaranteed typical efficiency of 89%.
Cybenetics LAMBDA
Not only is the efficiency of the power supplies evaluated, but also the noise they generate.
Zalman TERAMAX TMXII SE series power supplies with Lambda rating for certified silent power supply.
Guaranteed compatibility with Intel ATX 3.1 and AMD
Using PCIe* AIC power reserve and power supply for peak load (allows up to 200% of maximum rated power)
Meets low-load efficiency requirements and delivers high efficiency at low load. Meets all the needs of Intel and AMD RYZEN processors for high-performance PC users.
Comply with the PCIe 5.1 standard and come with a cable with a special 16-pin PCIe 5.1 connector for the latest video cards;
gold-plated connectors for stable power supply with low power losses;
active PFC with a maximum power factor of 99%
Active PFC system with a maximum power factor of 99% ensures stable and stable power output as well as high energy efficiency.
High efficiency ensures safe and stable system operation with low component noise, less heat from parts, and minimal power fluctuations;
12V DC-DC converter with 100% availability
The power supply supports a wide range of PC components, minimizing output voltage fluctuations and maximizing 12V DC output voltage to ensure stable system operation;
High-performance aluminum solid capacitors are used , which can withstand temperatures up to 100°C. Reliable capacitors that provide stable voltage at excessive temperature indicators;
A built-in electromagnetic interference filter is used to reduce noise. The electromagnetic interference filter is installed to reduce the frequency that is the source of noise, which helps to improve the performance of the system;
high efficiency and energy saving, 80 PLUS GOLD certified :
80PLUS Gold guarantees efficiency of 88%, 90%, 87% at load factors of 20%, 50% and 100%, which significantly reduces the overall energy consumption of the system.
High efficiency of the power supply helps reduce current losses, minimizes component overheating, and reduces high-frequency noise and fan noise;
Cable connection type - modular
The modular design minimizes voltage drop on cables and reduces resistance, which contributes to increased energy efficiency. It is possible to select and connect only the cables needed for the system and free up space inside the case for efficient cooling of components;
guaranteed protection against various overloads
OTP (overheat protection)
OCP (overcurrent protection)
OPP (power overload protection)
OVP (overvoltage protection)
UVP (undervoltage protection)
SCP (short circuit protection)
applied technologies and Zalman's own developments:
integrated advanced design method to reduce voltage fluctuations to 3% to ensure stable power supply;
flat cables (unlike sheathed cables, Zalman Tech uses flat cable for all cables, which simplifies their organization when assembling the system);
The motherboard cable and voltage sensor cable are connected at the same time to reduce voltage fluctuations.
Power supplies are made of environmentally friendly and non-hazardous materials that comply with RoHS . Certified products are environmentally friendly and do not harm the human body.
guaranteed maximum efficiency 92% (230 V)
Energy conversion efficiency up to 92% reduces energy leakage and maintenance costs
Ensuring energy saving and a stable working environment for your system;
FDB (hydrodynamic bearing) 120mm power supply fan.
Quiet and durable FDB (hydrodynamic bearing) cooling technology has the advantages of low noise and long service life.
The fan operates to dissipate internal heat and provide sufficient cooling at low speeds for the most stable and safe power supply;
compact size - standard ATX size provides wide compatibility with PC cases;
Ventilation holes (perforation of the power supply housing) contribute to active heat dissipation from the component base.
The range of Zalman TERAMAX TMXII SE series power supplies:
ZM850- TMX 2SE – power 850W
ZM1000- TMX 2SE – power 1000W
A concentrate of pure power
Designed to deliver excellent performance, the MSI MAG FORGE 100R gaming case can rely on its 3 included 120mm fans (6 slots maximum) to cool your machine efficiently.It accommodates ATX, Micro-ATX or Mini-ITX motherboards as well as graphics cards up to 330 mm and is also compatible with watercooling systems up to 240 mm in length. In addition, it features customisable ARGB lighting to enhance your gaming space.
Efficient ventilation
Component cooling is an important part of any gaming setup. Therefore, in order to maximise the available airflow, the FORGE 100R is equipped with 3 x 120mm fans, 2 in the front and 1 in the back. In addition, 2 more 120/140mm slots are located at the top to further enhance the cooling potential if required. This means that your system will be optimally cooled and you can focus on your gameplay. In addition, watercooling compatibility allows this case to accommodate a maximum of 240 mm radiators.
The two dust filters are very useful for keeping your components clean. All the necessary connectivity is also present with 2 USB 3.0 ports and the classic audio inputs/outputs without forgetting the RGB adjustment button.
Light up your victory!
Beyond its good performance, this case offers a modern and aggressive look, reinforced by the ARGB lighting system on the front fans. Indeed, this system is capable of creating beautiful lighting effects, which you can even synchronize with your other MSI Mystic Light compatible products to achieve a seamless result.The 4mm tempered glass side panel combines style and strength to showcase your chosen backlight.
Main features :
- Medium tower case with 4mm tempered glass side panel
- Modern design
- ARGB system on front fans with Mystic Light compatibility
- ATX / Micro-ATX / Mini-ATX motherboard compatible
- 3 x 2.5" and 2 x 2.5"/3.5" bays
- 7 expansion slots available
- Powerful cooling system with 6 fan slots (3 x 120 mm included)
- Watercooling compatible (max. 240 mm length)
- Connectivity: 2 x USB 3.0, LED control and HD audio
- Possibility to install a graphics card up to 330 mm long
- 2 removable dust filters

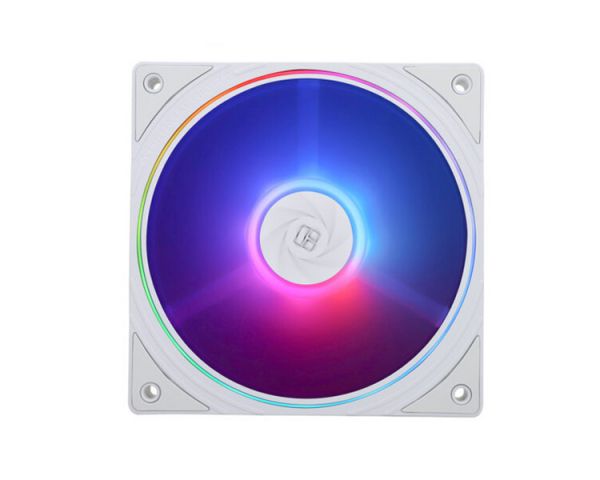

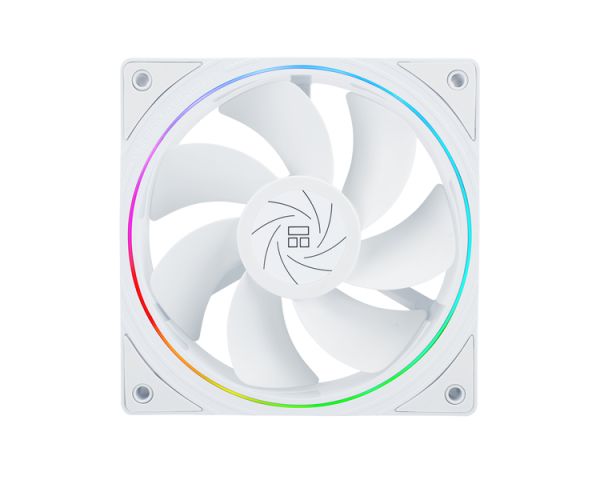

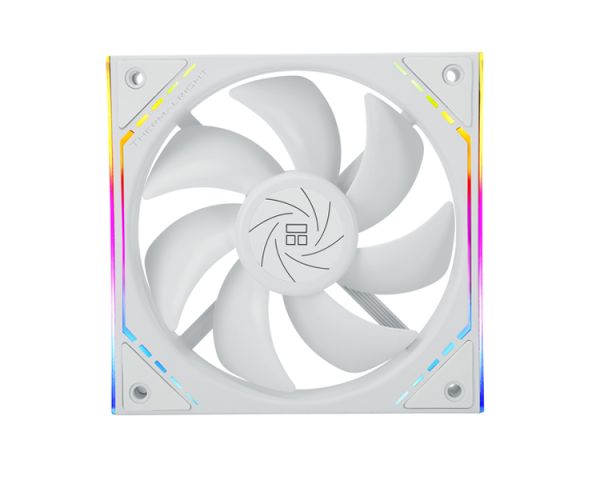

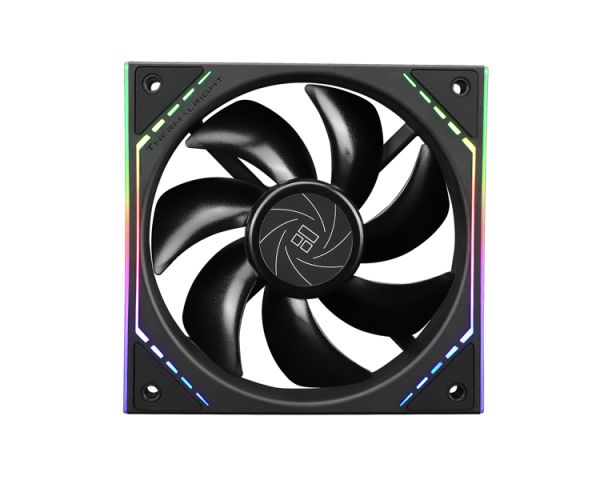

ბრენდი:THERMALRIGHT
მახასიათებლები
დანიშნულება:ქეისის ქულერი
გამაგრილებლის რაოდენობა:1
ქულერის ზომა:120 x 120 x 25 მმ
ბრუნვის სიჩქარე:1500 ბრუნი/წთ ±10% (MAX)
კონექტორი:3 PIN 5V (ARGB Connector), 4 PIN PWM
ხმაურის დონე:23.2 dBA (MAX)
ჰაერის ნაკადი:47.6 CFM (MAX)
განათება:ARGB
ნომინალური ძაბვა:12V DC
ბრენდი:THERMALRIGHT
მახასიათებლები
დანიშნულება:ქეისის ქულერი
გამაგრილებლის რაოდენობა:1
ქულერის ზომა:120 x 120 x 25 მმ
ბრუნვის სიჩქარე:2000 ბრუნი/წთ ±10% (MAX)
კონექტორი:4 PIN PWM
ხმაურის დონე:27.7 dBA (MAX)
ჰაერის ნაკადი:72.37 CFM (MAX)
განათება:არა

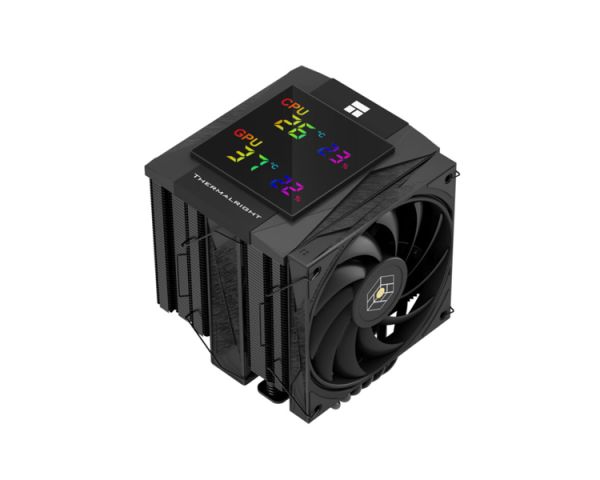

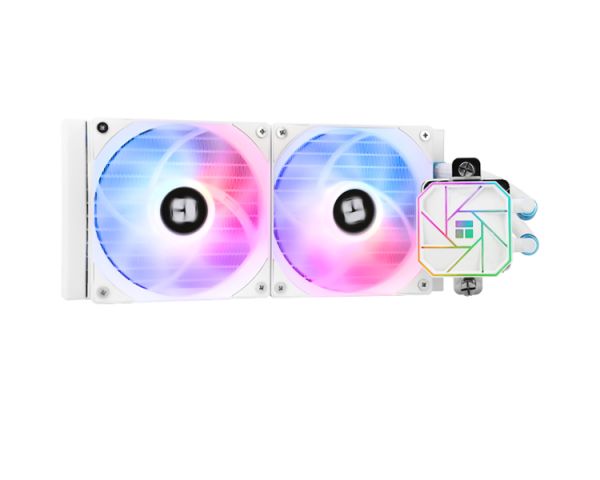

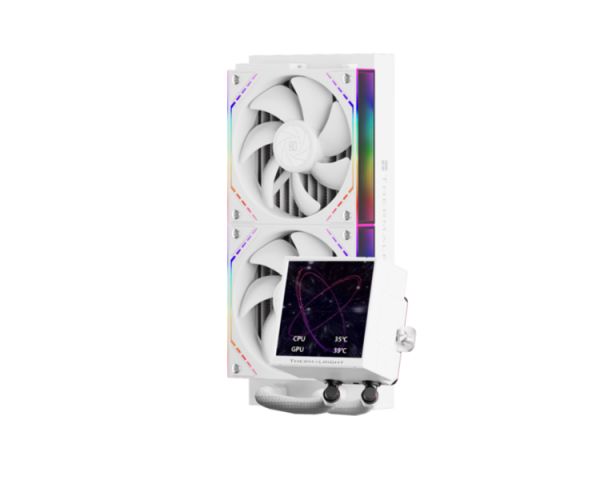

ბრენდი:THERMALRIGHT
მახასიათებლები
დანიშნულება:პროცესორის ქულერი
სოკეტის თავსებადობა:Intel Socket: LGA115X/1200/1700/1851; AMD Socket: AM4/AM5
გამაგრილებლის რაოდენობა:3
ბრუნვის სიჩქარე:2000 ბრუნი/წთ ±10% (MAX)
ქულერის ზომა:120 x 120 x 25 მმ
კონექტორი:4 PIN PWM, 3 PIN 5V (ARGB Connector)
ჰაერის ნაკადი:70.84 CFM (MAX)
ხმაურის დონე:29.8 dBA
განათება:ARGB
რადიატორის ზომა:397 x 120 x 27 მმ
რადიატორი:ალუმინის

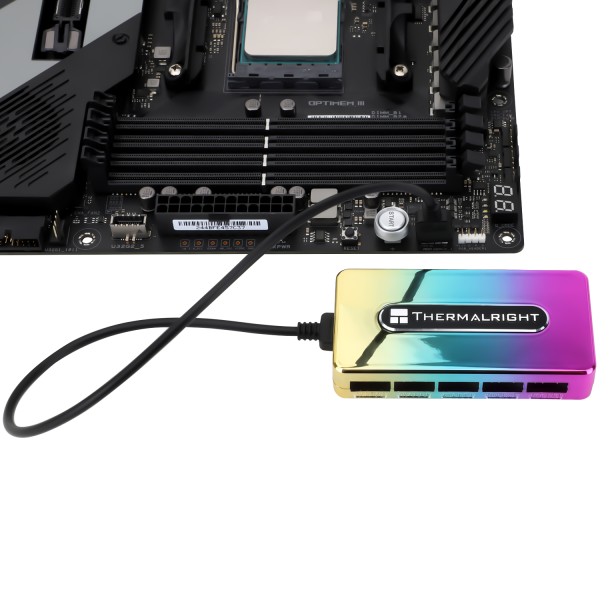

Specifications:
Size : 90 x 46 x 16mm
Weight : 50g
Color : Multicolor
Material：Plastic
Function : PWM Fan HUB Controller+ARGB 5V/3Pin synchronizing signal
დანიშნულება:ქეისის ქულერი
გამაგრილებლის რაოდენობა:1
განათება:არა
ბრენდი: Gigabyte
მოდელი: GP-P650G
პროდუქტის ტიპი: კვების ბლოკი
ტიპი: Intel Form Factor ATX 12V
PFC: აქტიური PFC (>0.9 ტიპიური)
შემავალი ძაბვა: 100-240 Vac(full range)
შემავალი დენი: 9-4A
შემავალი სიხშირე: 60-50 ჰც
გამომავალი სიმძლავრე: 650 W
ზომა: 150 x 140 x 86 მმ
ვენტილატორის ტიპი: 120 მმ Hydraulic Bearing (HYB) Fan
80 PLUS: Gold
ეფექტურობა: 90% ტიპიური დატვირთვით
MTBF: >100000 საათი
დაცვა: OVP/OPP/SCP/UVP/OCP/OTP
სიმძლავრე კარგი სიგნალი: 100-500 მმ
კონექტორები
ATX/MB 20+4 Pin x 1: 600მმ*1
CPU/EPS 4+4 Pin x 2: 600მმ+150მმ*1
PCI-e 6+2 პინი x 4: 500მმ+150მმ*2
SATA x 6: 500 მმ + 150 მმ + 150 მმ * 2
4 პინიანი პერიფერიული x 3: 500 მმ + 150 მმ + 150 მმ * 1
ფერი: შავი
