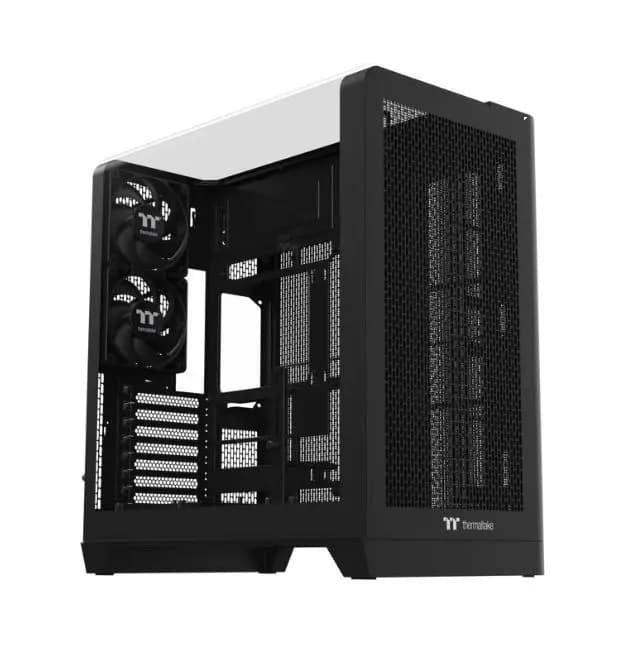

View 390 Air Mid Tower Chassis, Case Black 503 x 287 x 485mm(19.80 x 11.30 x 19.1inch)

P/N
CA-11F-00M1WN-00
Series
View
CASE TYPE
Mid Tower
Dimension (H x W x D)
503 x 287 x 485mm
(19.80 x 11.30 x 19.1inch)
PANEL
4mm Tempered Glass x 1
Color
Black
MATERIAL
SPCC
COOLING SYSTEM
Rear (exhaust):  120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2
Drive Bays
2 x 3.5” , 1 x 2.5” or 3 x 2.5”
EXPANSION SLOTS
7(Rotatable Patented Design)
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
Hidden-Connector Motherboard
9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm
2 x 140mm
2 x 200mm

Right:
3 x 120mm

 Rear:
2 x 120mm

Bottom:
3 x 120mm
RADIATOR SUPPORT
Front Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
CLEARANCE
CPU cooler height limitation: 160mm

VGA length limitation:
390mm with Radiator /420mm without Radiator

PSU length limitation: 200mm (with 2.5” SSD)
260mm (without 2.5” SSD)
