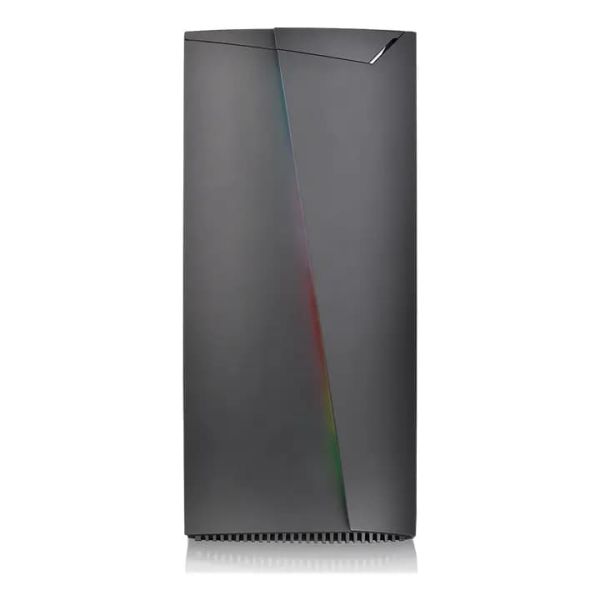

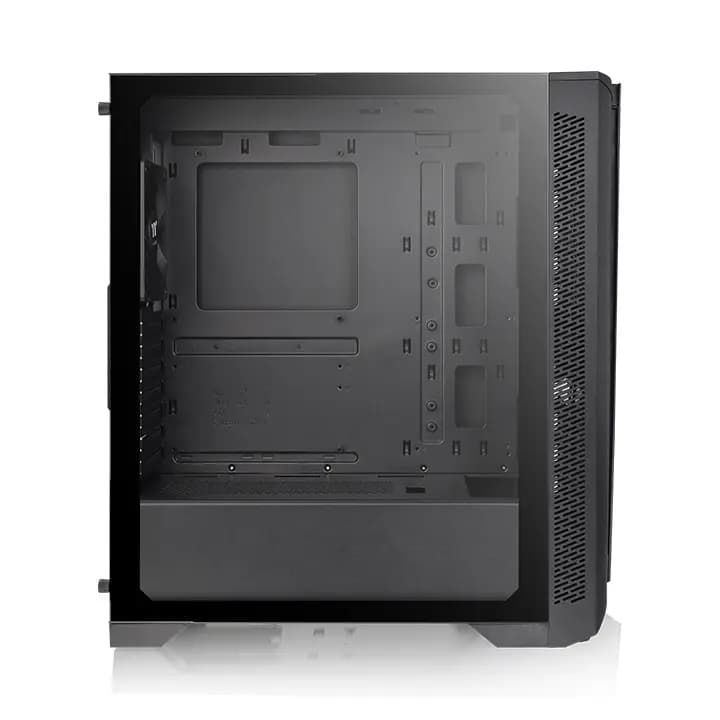

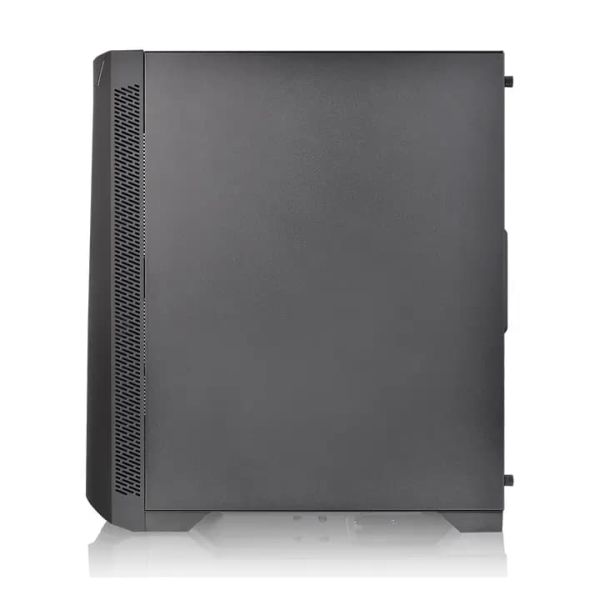

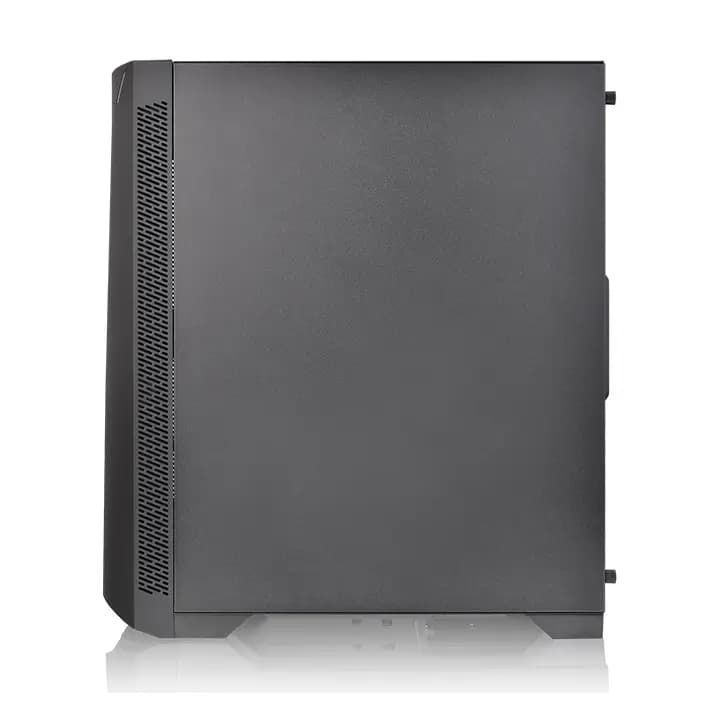

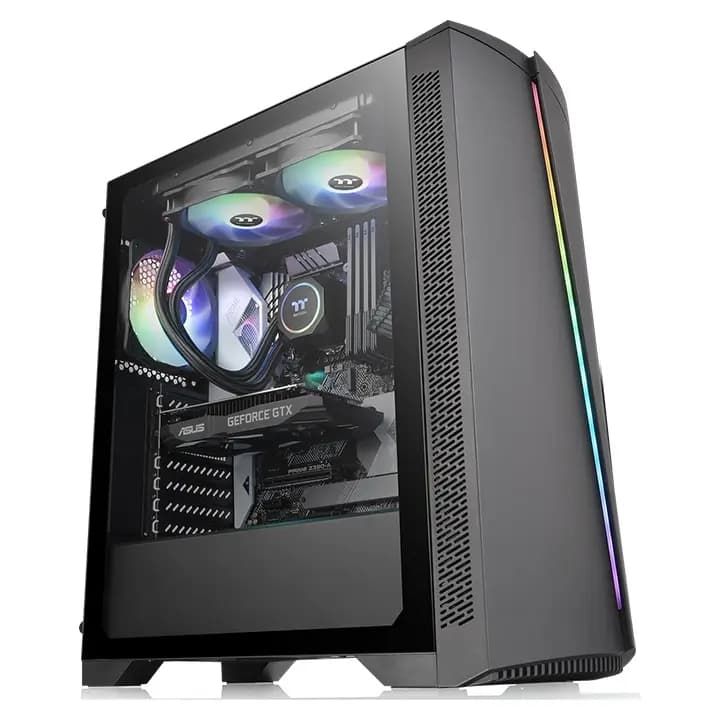

H350 Tempered Glass TG RGB Mid-Tower Chassis, Case, Black

P/N
CA-1R9-00M1WN-00
Series
H Series
Model
H350 TG RGB
CASE TYPE
Middle tower
Dimension (H x W x D)
442 x 210 x 480 mm
(17.4 x 8.27 x 18.9 inch)
NET WEIGHT
6.33 kg / 13.96 lb
PANEL
4mm Tempered Glass x1(Left)
Color
Exterior & Interior : Black
MATERIAL
SPCC
COOLING SYSTEM
Rear (exhaust) :
1 x 120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
Drive Bays
-Accessible
-Hidden

2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket)
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

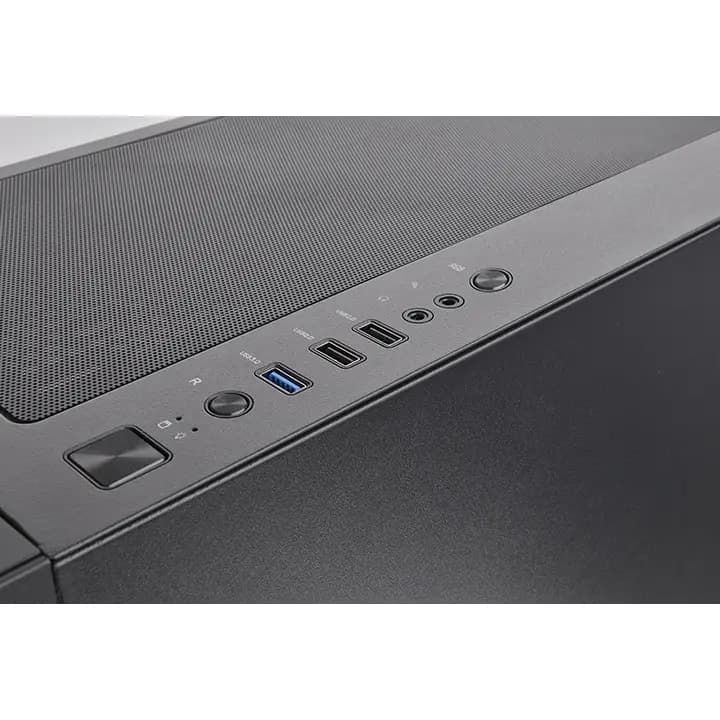

I/O Port
1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio,
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm or 2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
2 x 200mm or 1 x 200mm
Top:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Rear:
1 x 120mm,
RADIATOR SUPPORT
Front: 1 x 360mm or 1 x 240mm or 1 x 120mm
1x 280mm or 1 x 140mm
Top: 1 x 240mm or 1 x 120mm
Rear: 1 x 120mm
CLEARANCE
CPU cooler height limitation: 150mm
PSU length limitation: 160mm(With HDD Rack)
　　　　　　　　　 200mm(Without HDD Rack)
VGA length limitation: 300mm
RAM height limitation: 60mm(With radiator series)
