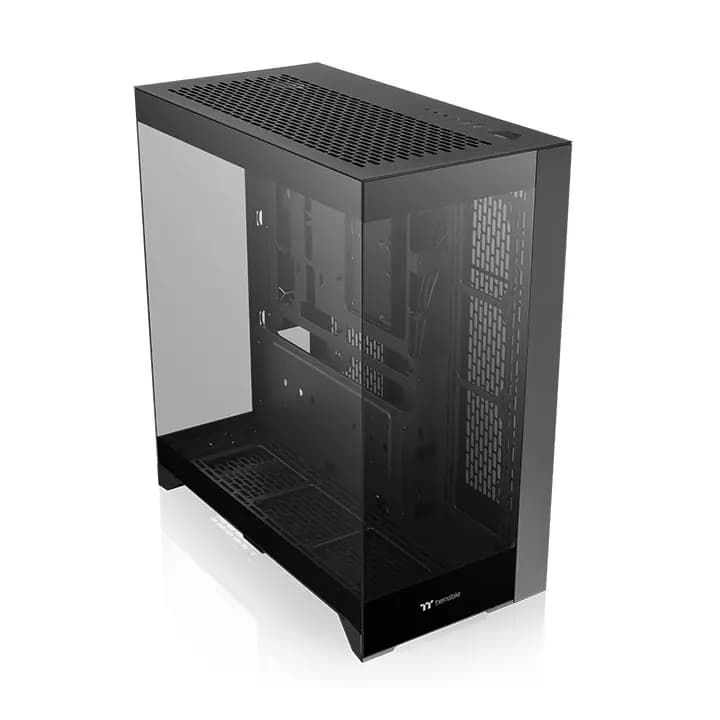

CTE E550 TG Mid Tower Chassis, Case, Black

P/N
CA-1Z8-00M1WN-00
Series
CTE
CASE TYPE
Mid Tower
Dimension (H x W x D)
558.5 x 270 x 513mm
 (21.99 x 10.63 x 20.2 inch)
NET WEIGHT
14.5 kg / 31.97 lbs.
PANEL
4mm Tempered Glass x 3
Color
Black
MATERIAL
SPCC
COOLING SYSTEM
3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5”
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5” (E-ATX)
I/O Port
USB 3.0 x 2, Type-c x1, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Top:
2 x 120mm, 1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
 Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
RADIATOR SUPPORT
Top:
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
 Bottom (DIY only):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
CLEARANCE
CPU cooler max height: 166mm
VGA max length: 415mm (with radiator)
443.8mm (without radiator)
 PSU max length: 220mm
