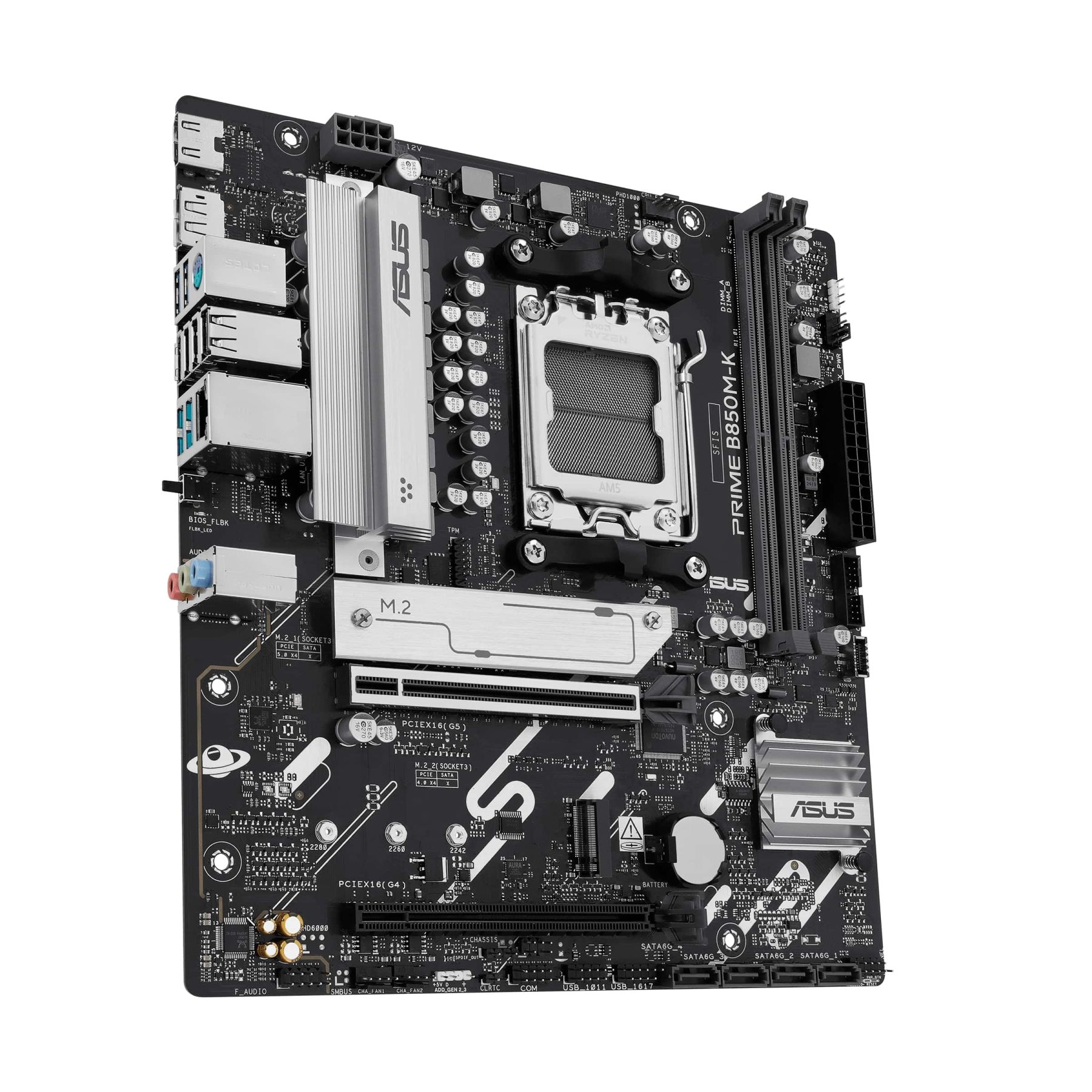

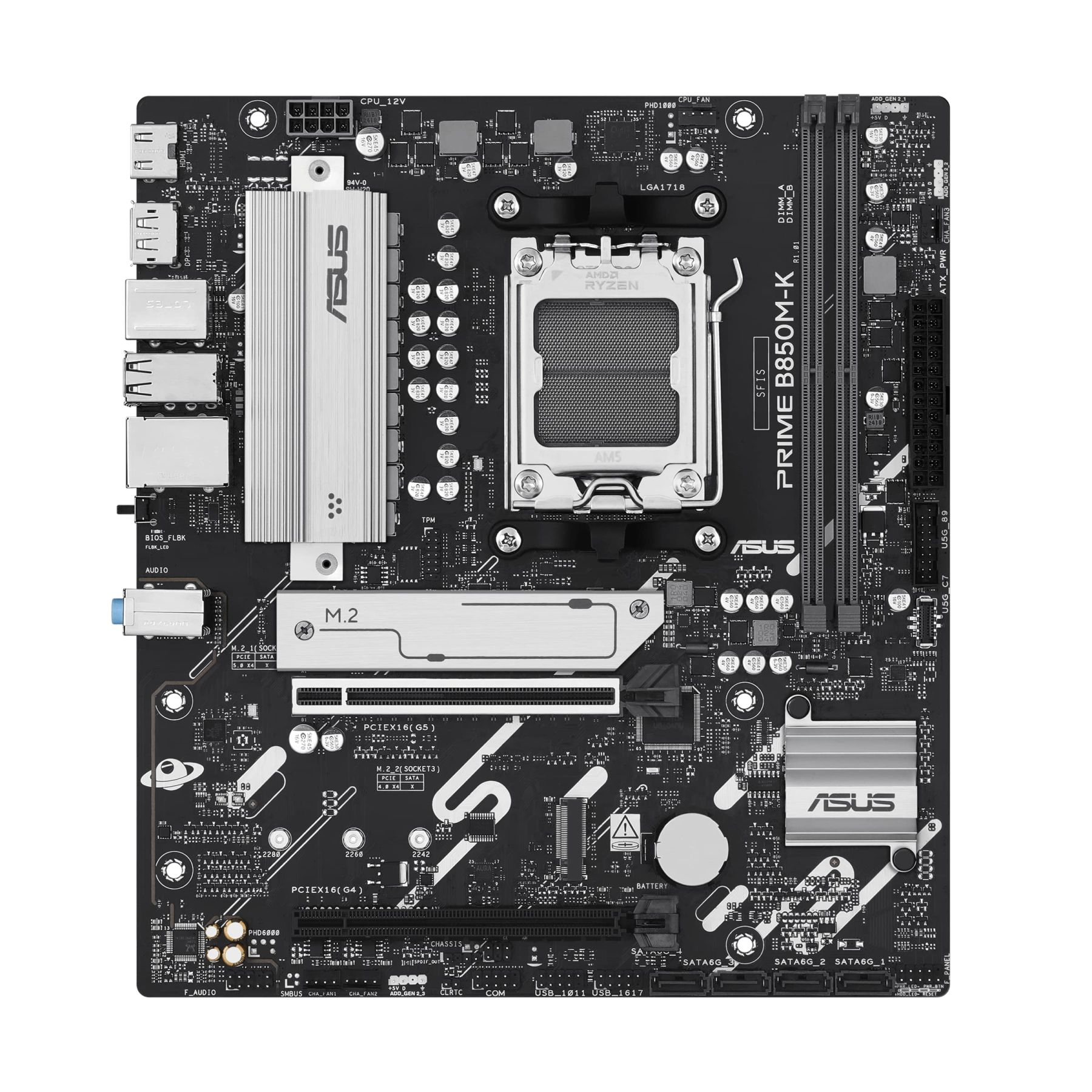

ASUS Motherboard PRIME B850M-K sAM5 B850 4xDDR5 M.2 HDMI DP mATX

Towards:gaming (overclocking)
Form factor:micro ATX
Processor
For processors:AMD
Connection type:AM5
Chipset
Northbridge (chipset):AMD B850
BIOS:UEFI
UEFI BIOS:ico-check
RAM
Connector type:DDR5
DDR5:2 slots
Maximum clock frequency:8200 MHz
Maximum memory capacity:128 GB
Video settings
Graphical interface:PCI-E x16 4.0
PCI-E x16 5.0
HDMI output:ico-check
DisplayPort:ico-check
Audio settings
Sound:7.1
Connecting drives
Connection interface:SATA 3
M.2
Software RAID support:ico-check
SATA3 (6 Gbit/s):4 ports
Network interfaces
LAN (RJ-45):2.5 Gbps
Number of LAN ports:1
LAN controller model:Realtek®

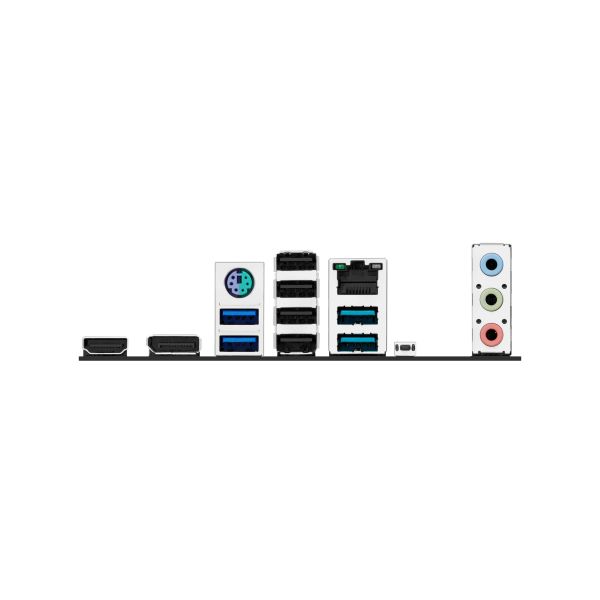

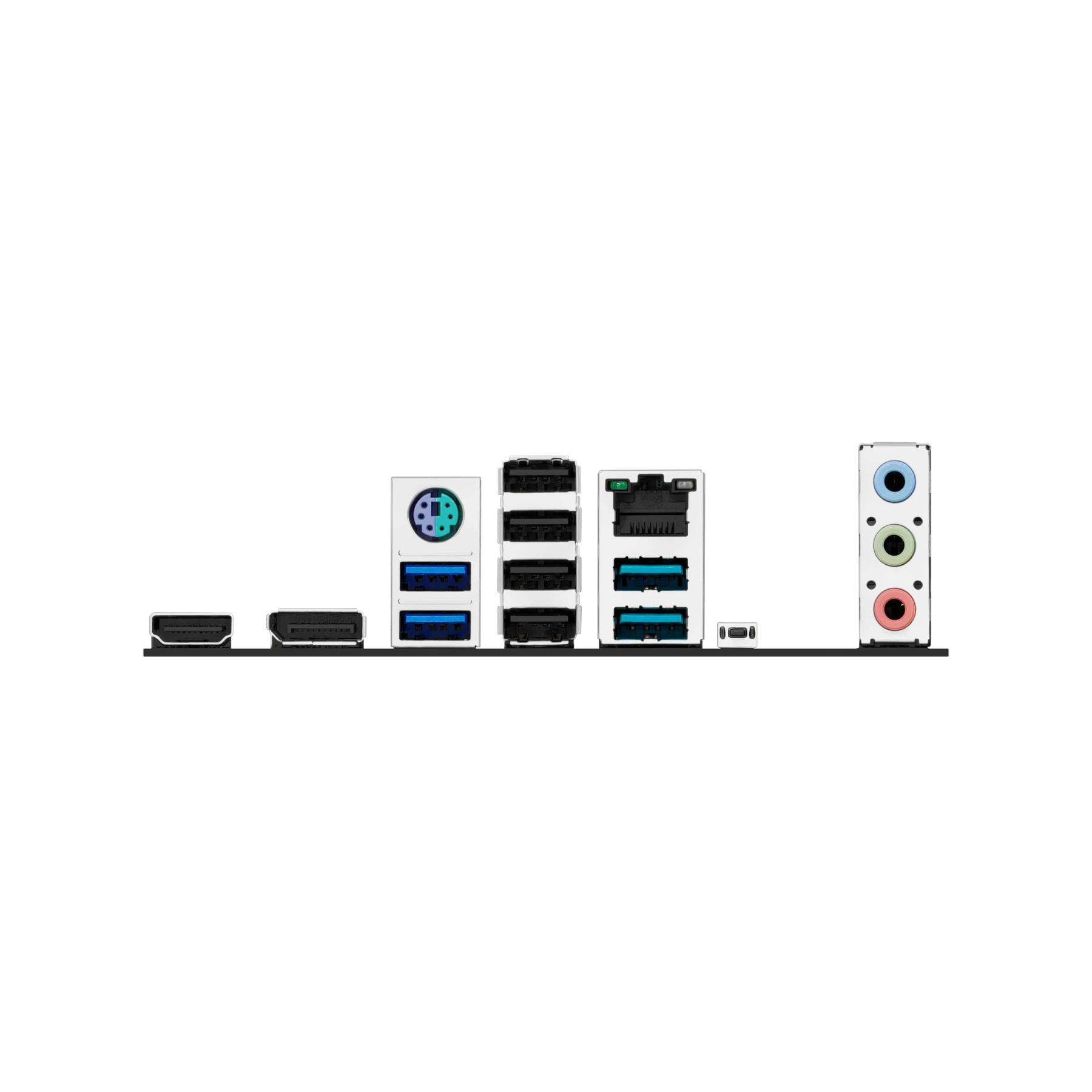

Connection connectors
USB:15 pcs (8 rear, 7 front)
USB 3.2 Gen 1:4 /(2 rear Type-A, 1 front Type-C connector, 1 front connector with support for 2 additional USB ports)
USB 3.2 Gen 2:2 /(rear Type-A)
M.2 connector:2
Additionally
Features:CPU fan header
Front panel audio connector
clear CMOS header
Support for Windows 10 64-bit
Asus Aura Sync lighting synchronization
CPU Fan Connector
ASUS 5X PROTECTION III
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
COM port header
Digi+ VRM
SPI TPM header
Fan Xpert 2+
Chassis Fan headers
Support for Windows 11 64-bit
ASUS DriverHub

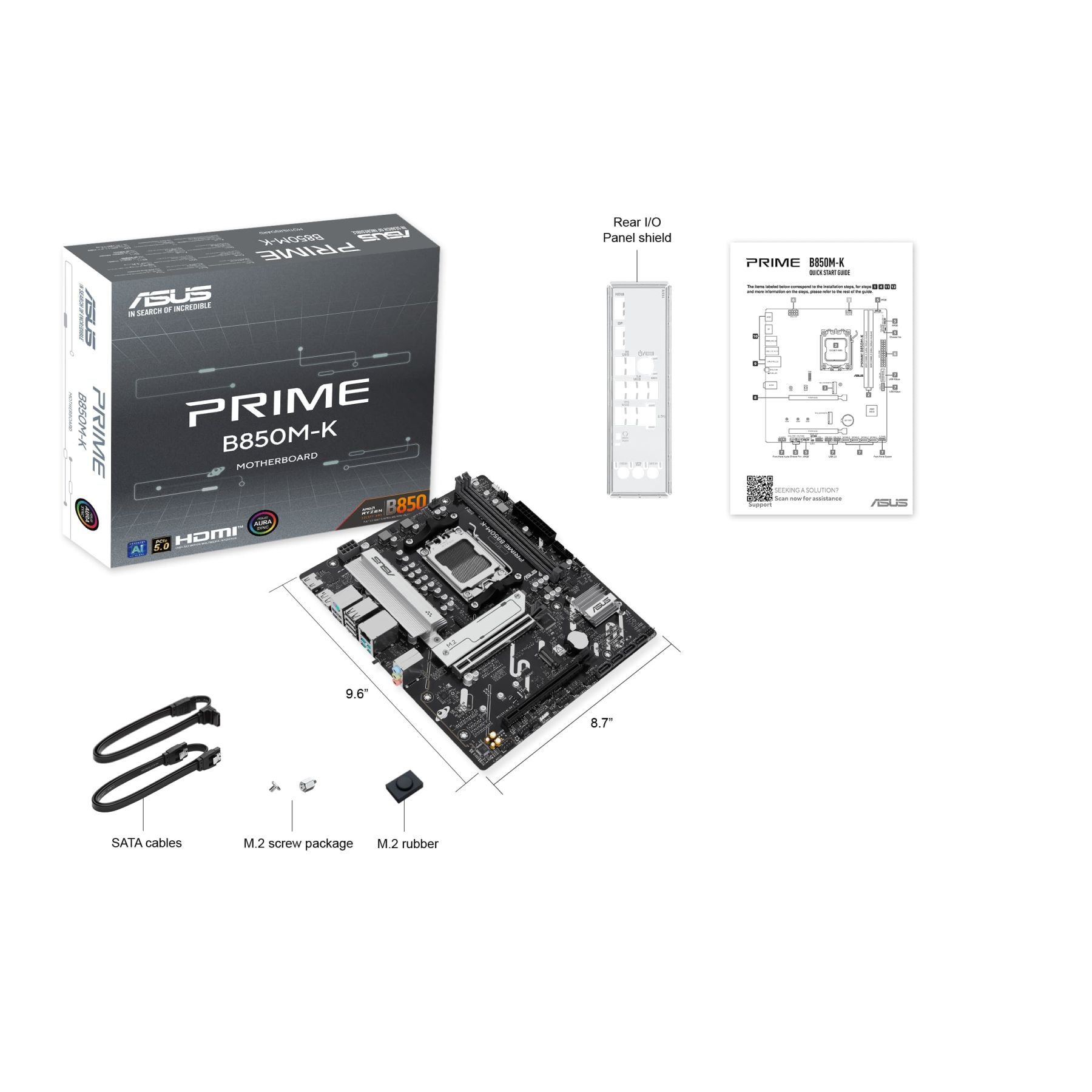

Equipment:SATA Cable /x2

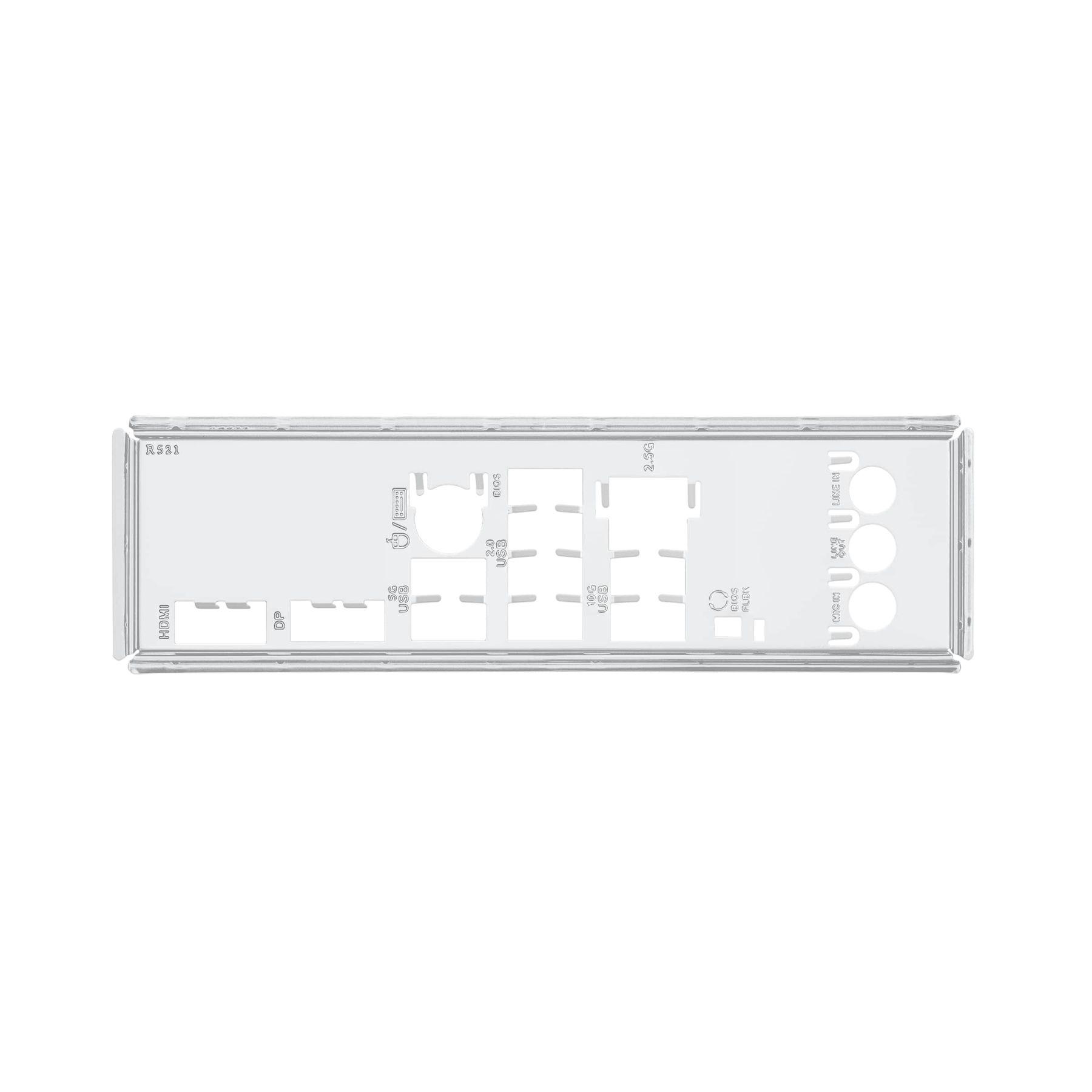

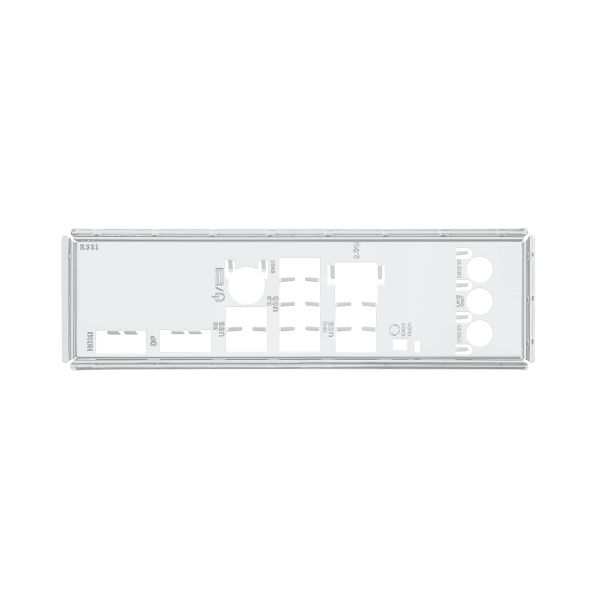

I/O Shield
M.2 Screw Package
M.2 Rubber Package
Quick start guide
Physical
Main power connector:24+8-pin
Dimensions (HxW):244 x 221 mm
Gross dimensions
Width:270 mm
Height:50 mm
Length:260 mm
Weight:1.08 kg
Volume:0.0035 m3
