S100 TG, THERMALTAKE, CASE, Black, mATX, 1x120mm Fan, AIO 280mm, air 165mm, GPU 330mm, 2x3.5”, USB 3.0x1, USB 2.0x2, Audio+m

Series: S Series
Model: S100 TG
Case Type: Micro Case

Dimension (H x W x D):
441 x 220 x 411 mm
(17.36 x 8.66 x 16.18 inch)

Net Weight:
6.1 kg / 13.45 lbs.

Panel:

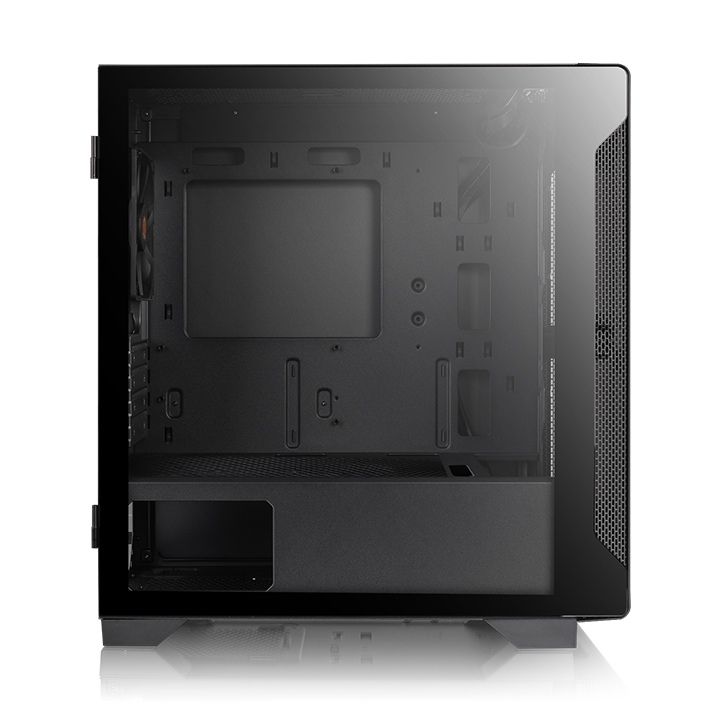

Tempered Glass x 1

Color:
Exterior & Interior: Black

Material:
SPCC

Cooling System

Rear (exhaust):
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)

Drive Bays

Accessible / Hidden:
2 x 2.5” (HDD Bracket)
2 x 3.5” or 2 x 2.5” (HDD Rack)

Expansion Slots: 4

Motherboards

6.7” x 6.7” (Mini ITX)
9.6” x 9.6” (Micro ATX)

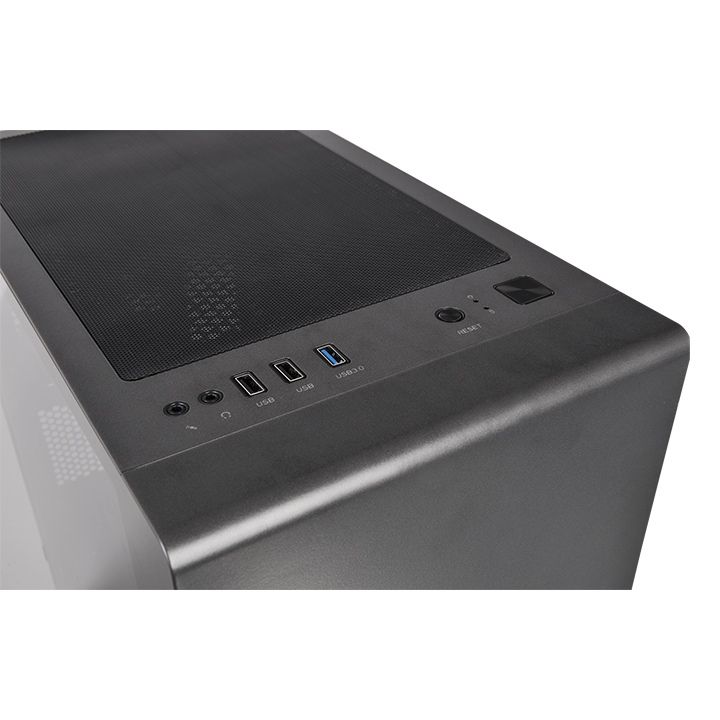

I/O Port

1 x USB 3.0
2 x USB 2.0
1 x HD Audio

PSU:
Standard PS2 PSU (optional)

Fan Support

Front:
3 x 120mm
2 x 140mm

Top:
2 x 120mm
2 x 140mm
1 x 200mm

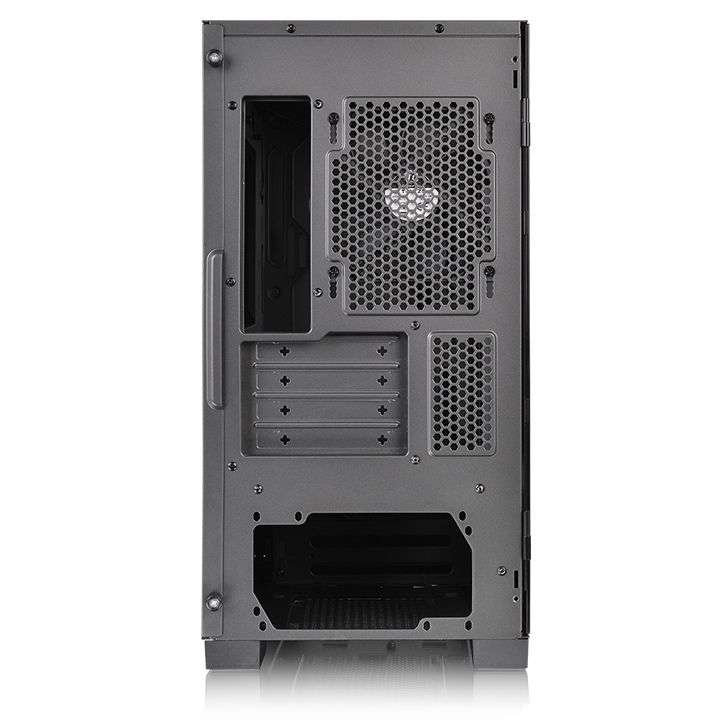

Rear:
1 x 120mm

Radiator Support

Front:
1 x 240mm
1 x 280mm

Top:
1 x 240mm
1 x 280mm

Rear:
1 x 120mm

Clearance

CPU cooler height limitation: 165mm
PSU length limitation: 160mm
VGA length limitation: 330mm
