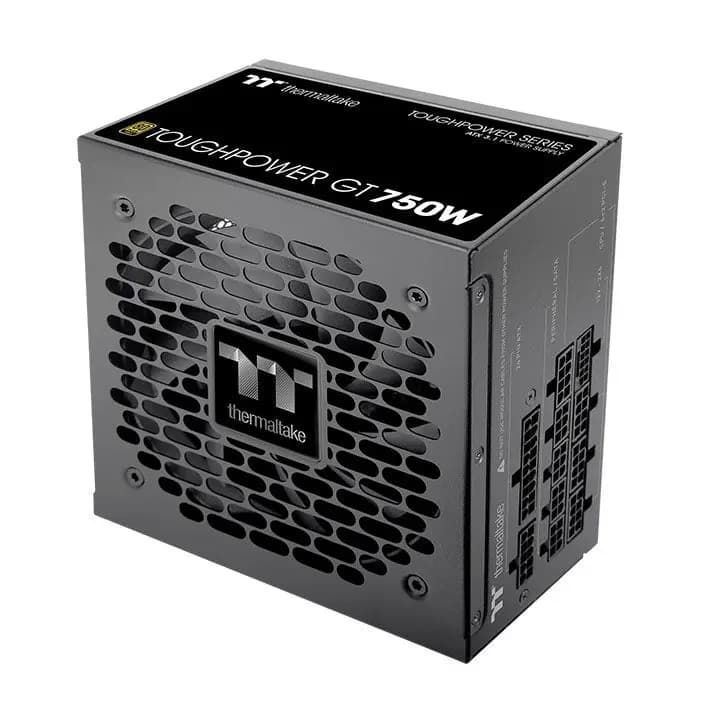

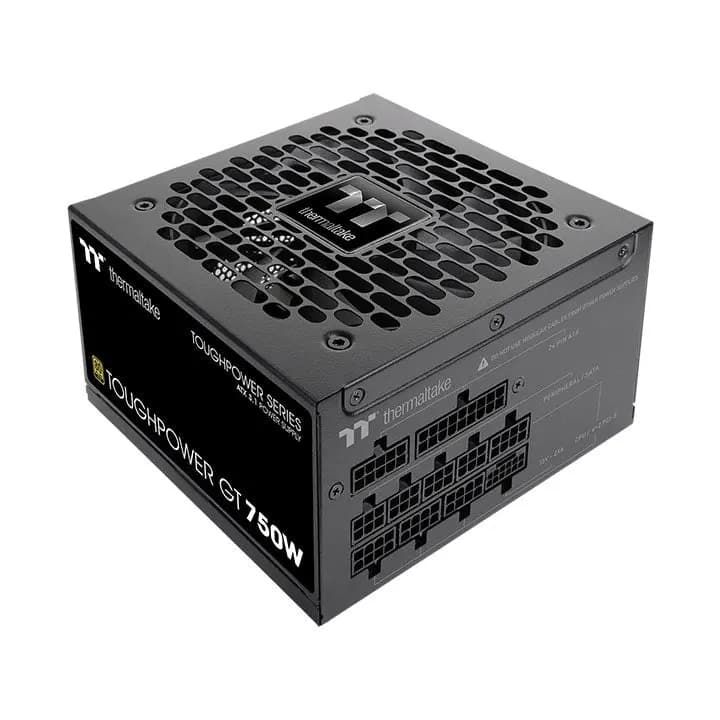

Toughpower GT 750W, ThermalTake Black, Fully Modular Power Supply, Full Range, 80 Plus Gold, EU, ATX 3.1, PS-TPT-0750FNFAGE-3

General:

Wattage: 750W

Model: TPD-750AH2FXG-3

Max Output Capacity: 750W

Color: Black

Dimensions (W x H x D): 150 x 86 x 140 mm

PFC: Active PFC

Electrical Specifications:

Power Good Signal: 100–250 msec

Hold Up Time: >17 msec at 80% load

Input Current: 10A Max

Input Voltage: 100–240V～

Input Frequency Range: 50–60 Hz

Operating Conditions:

Operating Temperature: 0°C to +40°C

Operating Humidity: 5%–85%, non-condensing

Storage Temperature: -40°C to +70°C

Storage Humidity: 5%–95%, non-condensing

Cooling System:

12cm hydraulic bearing fan

Performance:

Efficiency: Meets 80 PLUS® Gold at 115V AC input

MTBF: 100,000 hours minimum

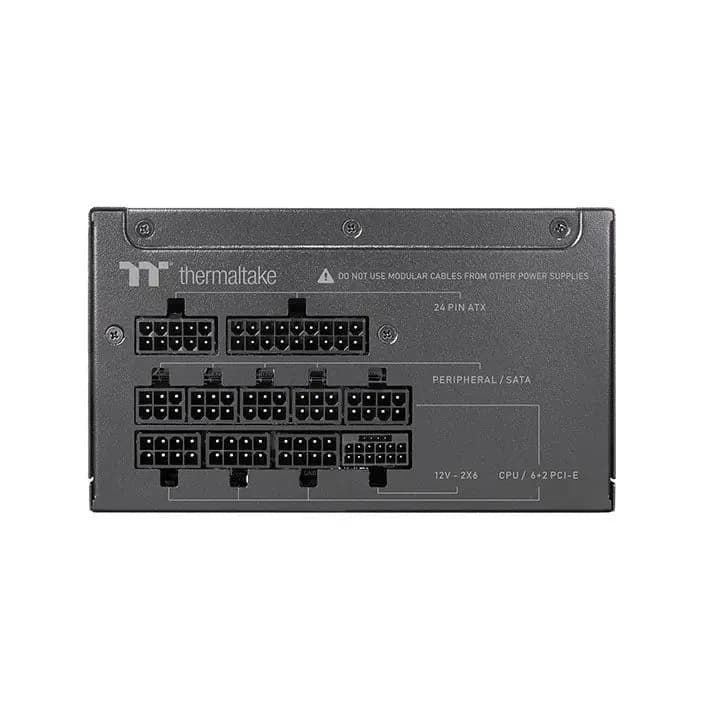

Connectors:

PCI-E 6+2pin x 4

PCIe 12+4pin x 1

Protections:

OVP (Over Voltage Protection)

UVP (Under Voltage Protection)

OCP (Over Current Protection)

OPP (Over Power Protection)

OTP (Over Temperature Protection)

SCP (Short Circuit Protection)

Certifications:

CE / UKCA / ICES / TUV / LVD / RCM / CB / FCC / cTUVus / BSMI / CCC / BIS / S-MARK
