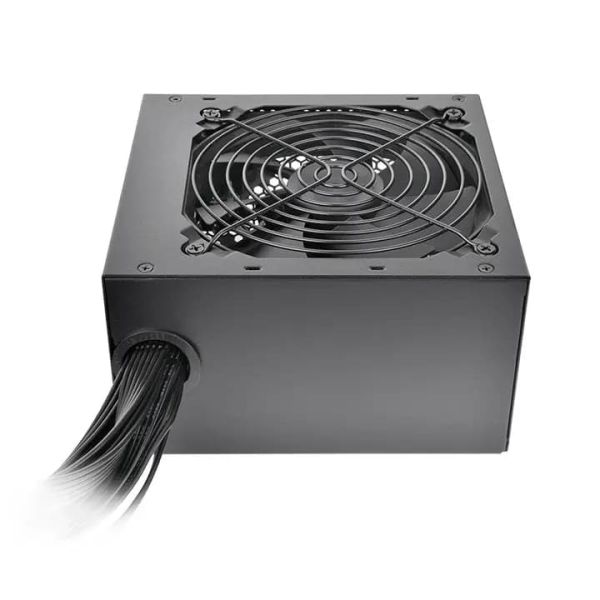

TR2 S 750W, ThermalTake, Power Supply, ATX 2.3, A-PFC, 12cm, EU, 80 PLUS, 230V, PS-TRS-0750NNSAWE-2

General:

Wattage: 750W (DC to DC)

Model: TRS-750AH4NXW

Dimensions (W x H x D): 150 x 86 x 140 mm

PFC: Active PFC

Electrical Specifications:

Power Good Signal: 100–150 msec

Hold Up Time: >17 msec at 80% load

Input Current: 8A Max

Input Voltage: 200–240 Vac

Input Frequency Range: 50 Hz

Operating Conditions:

Operating Temperature: 5°C to +40°C

Operating Humidity: 20%–85%, non-condensing

Storage Temperature: -40°C to +55°C

Storage Humidity: 10%–95%, non-condensing

Cooling System:

120mm hydraulic bearing fan

Performance:

Efficiency: 80 PLUS® 230V EU Certified

MTBF: 100,000 hours minimum

Connectors:

PCI-E 6+2pin x 2

Protections:

OVP (Over Voltage Protection)

OPP (Over Power Protection)

SCP (Short Circuit Protection)

Certifications:

FCC / ICES / CB / cTUVus
