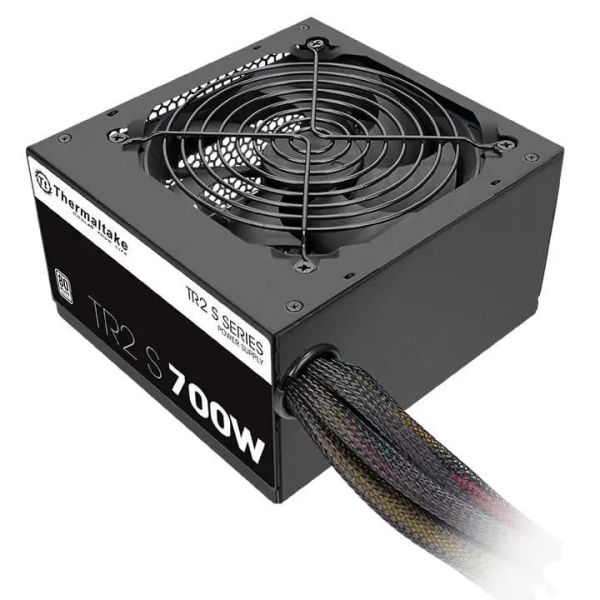

TR2 S, 700W, ThermalTake, Power Supply, ATX 2.3, A-PFC, 12cm, EU, 80 PLUS White, 230V, PS-TRS-0700NPCWEU-2

General:

Wattage: 700W

Form Factor: ATX

Model: TRS-700AH2NK

Type: Intel ATX 12V 2.3

Color: Black

RGB Fan: No

Electrical Specifications:

Max Output Capacity: 700W

PFC: Active PFC

Power Good Signal: 100–500 msec

Hold Up Time: 16 msec (minimum) within 60% load

Input Current: 9A max

Input Voltage: 230 Vac

Input Frequency Range: 50–60 Hz

Operating Conditions:

Operating Temperature: 5°C to +40°C

Operating Humidity: 20%–85%, non-condensing

Storage Temperature: -40°C to +55°C

Storage Humidity: 10%–95%, non-condensing

Cooling System:

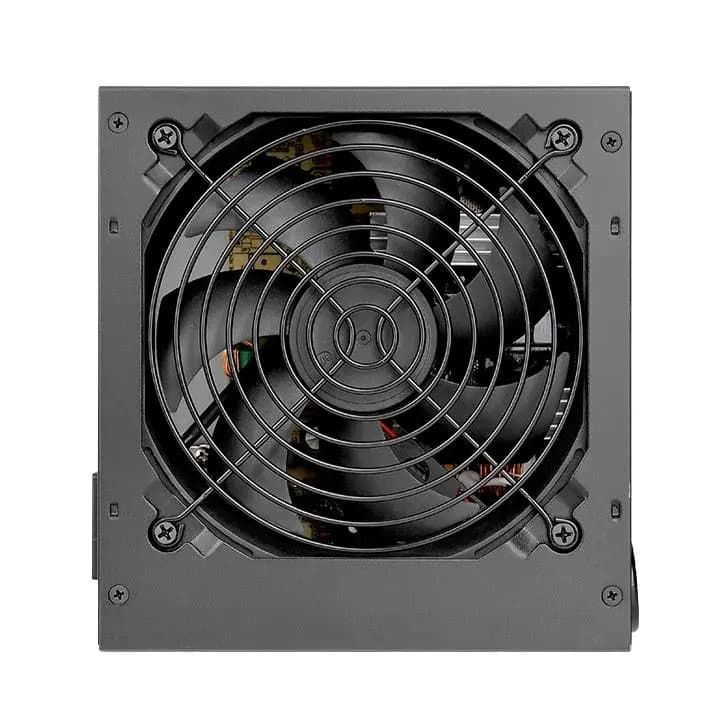

120mm fan, 1800 RPM ±10%

Performance:

Efficiency: 82–86% @ 20–100% load

MTBF: 100,000 hours minimum

Connectors:

PCI-E 6+2pin x 2

Certifications:

CE / CB / TUV
