Kingston FURY (RGB) 32GB 6000MHz DDR5 DIMM CL36 2Rx8 4G x 64-Bit

SPECIFICATIONS
KF560C36BBEA-32
32GB 4G x 64-Bit
DDR5-6000 CL36 288-Pin DIMM
Continued >>
FEATURES

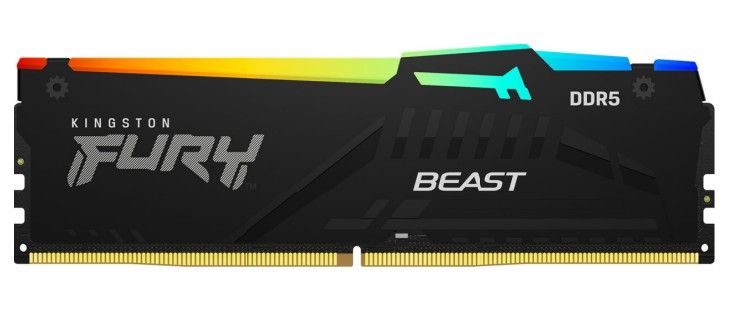

Kingston FURY KF560C36BBEA-32 is a 4G x 64-bit (32GB)
DDR5-6000 CL36 SDRAM (Synchronous DRAM) 2Rx8, memory
module, based on sixteen 2G x 8-bit FBGA components per module.
The module supports AMD® EXPO v1.0 and Intel® Extreme
Memory Profiles (Intel® XMP) 3.0. Each module has been
tested to run at DDR5-6000 at a low latency timing of 36-38-38 at
1.35V. The SPDs are programmed to JEDEC standard latency
DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM
uses gold contact fingers. The JEDEC standard electrical
and mechanical specifications are as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
40 cycles
48ns(min.)
295ns(min.)
32ns(min.)
94 V - 0
0o
 C to +85o
 C
-55o
 C to +100o
 C
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #0: DDR5-6000 CL36-38-38 @1.35V
• EXPO Profile #1: DDR5-5600 CL36-38-38 @1.25V
• XMP Profile #1: DDR5-6000 CL36-38-38 @1.35V
• XMP Profile #2: DDR5-5600 CL36-38-38 @1.25V
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.66” (42.23mm), w/heatsink
Document No. 4810699A 01/04/23 Page 1 kingston.com
Memory Module Specifications
MODULE DIMENSIONS
MODULE WITH HEAT SPREADER
continued
All Kingston products are tested to meet our published specifications. Some motherboards or system configurations may not operate at
the published Kingston FURY memory speeds and timing settings. Kingston does not recommend that any user attempt to run their
computers faster than the published speed. Overclocking or modifying your system timing may result in damage to computer components.
