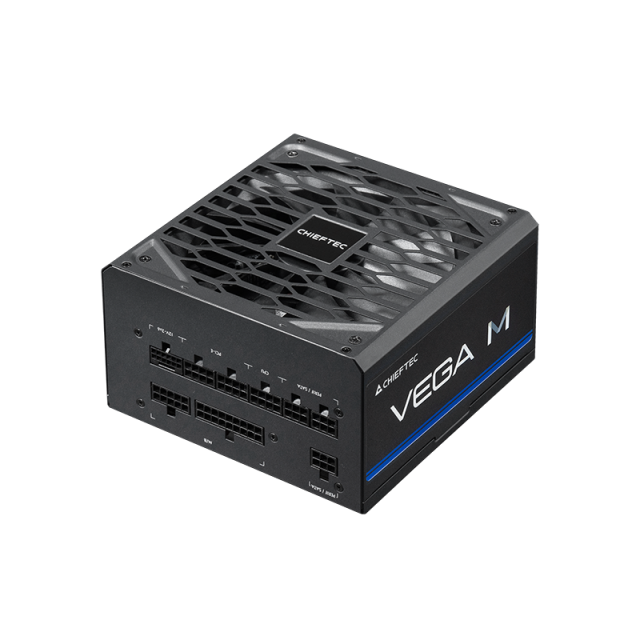

CHIEFTEC PSU Vega M (750W), >90%, 80+ Gold, 135mm FDB, 1xMB 24pin(20+4), 2xCPU 8pin(4+4), 3xMolex, 6xSATA, 4xPCIe 8pin(6+2), 1xPCIe GEN5 16pin, Fully Modular

Model :Vega M 750W
Article no. :PPG-750-C
EAN code :0753263078896
Weight (without/with package) :1.96kg / 2.43kg
AC Input :100 - 240V~ / 10 - 5A
Frequency :50 - 60Hz
+5V :20A
+3,3V :20A
+5V & +3,3V combined :100W
+12V1 :62.5A
+12V2 :-
+12V1, +12V2 combined :750W
P.F. :>0.9
-12V :0.3A / 3.6W
+5VSB :3.0A / 15W
Maximum Power :750W

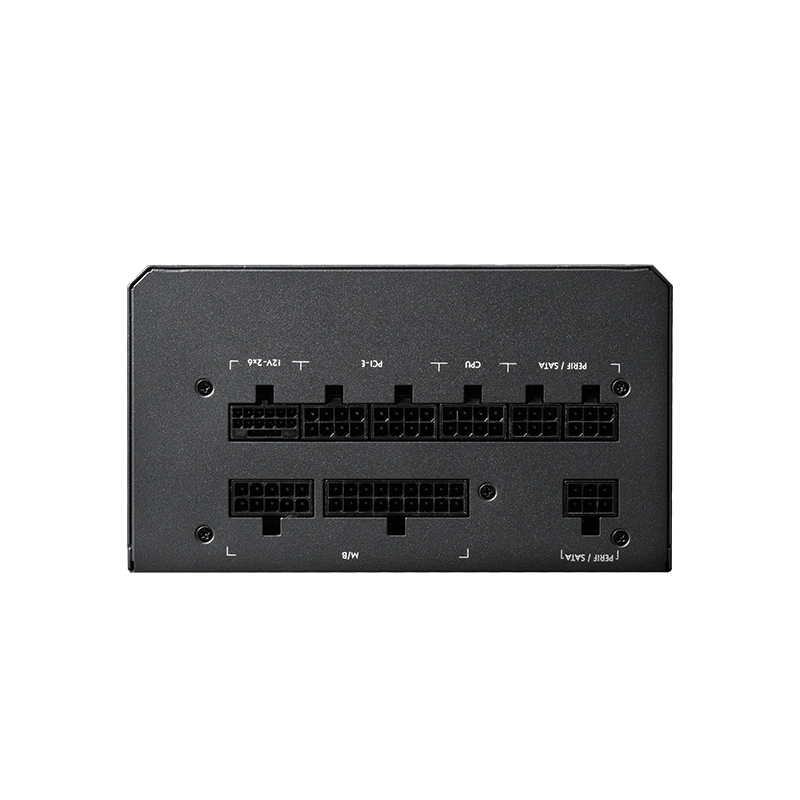

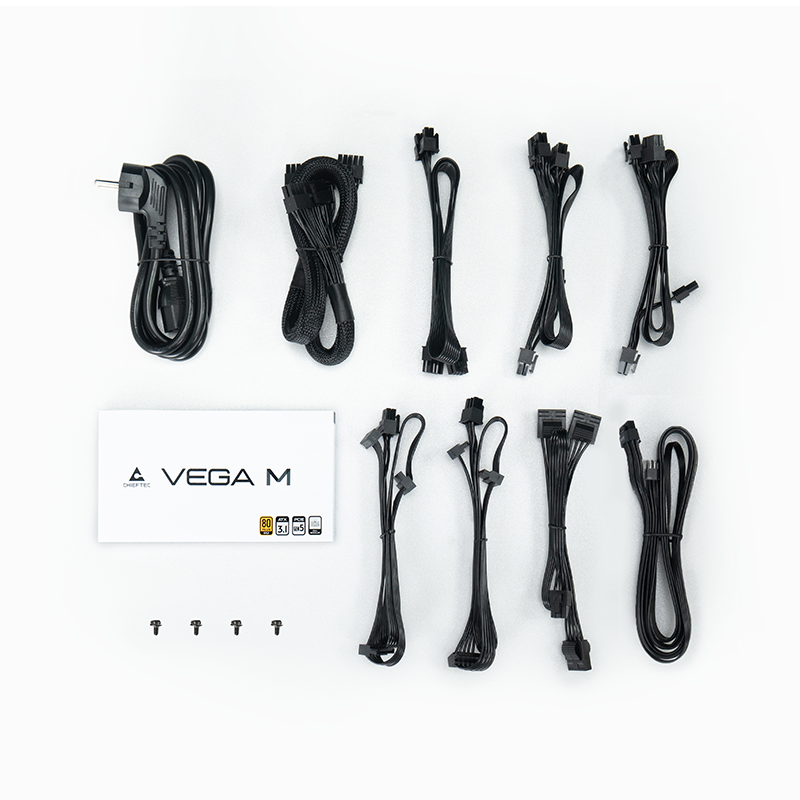

Connectors
20+4 PIN ATX :1
8 PIN EPS (8/4+4) :1/1
8 PIN PCIe (6+2) :4
16 PIN 12V - 2 x 6 :1
SATA :6
MOLEX :3

Cable length (mm)
20+4 PIN ATX :600
8 PIN EPS (4+4) :650/150
8 PIN PCIe (6+2) :2 x 600/150
16 PIN 12V - 2 x 6 :600
SATA :2 x 400/150/150
MOLEX :400/150/150


Features
ATX12V Version :ATX 12V 3.1
Efficiency :80Plus Gold
Dimension (DxWxH) :150 mm x 150 mm x 85 mm
PFC :Active PFC (0.9)
Fan :135mm FDB fan
Security :AFC (Automatic Fan Speed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short-Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
OCP (Over-Current Protection)
