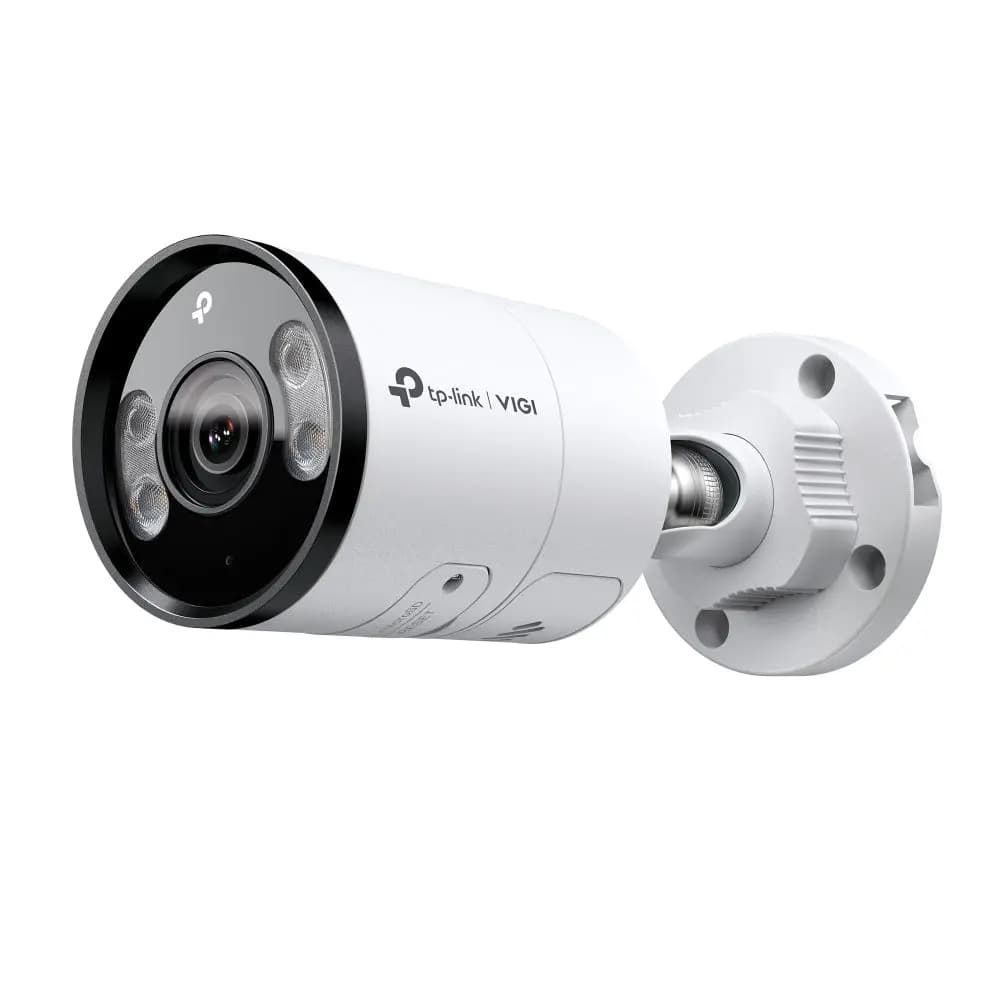

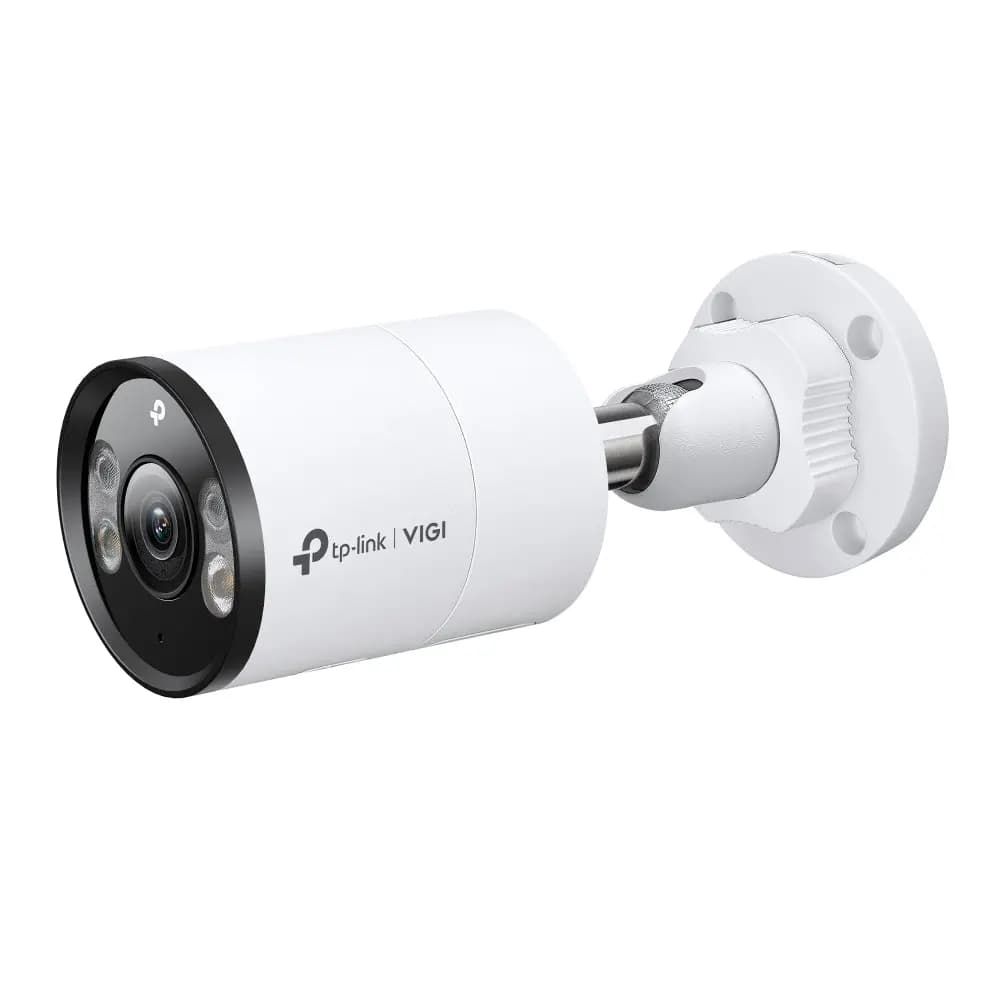

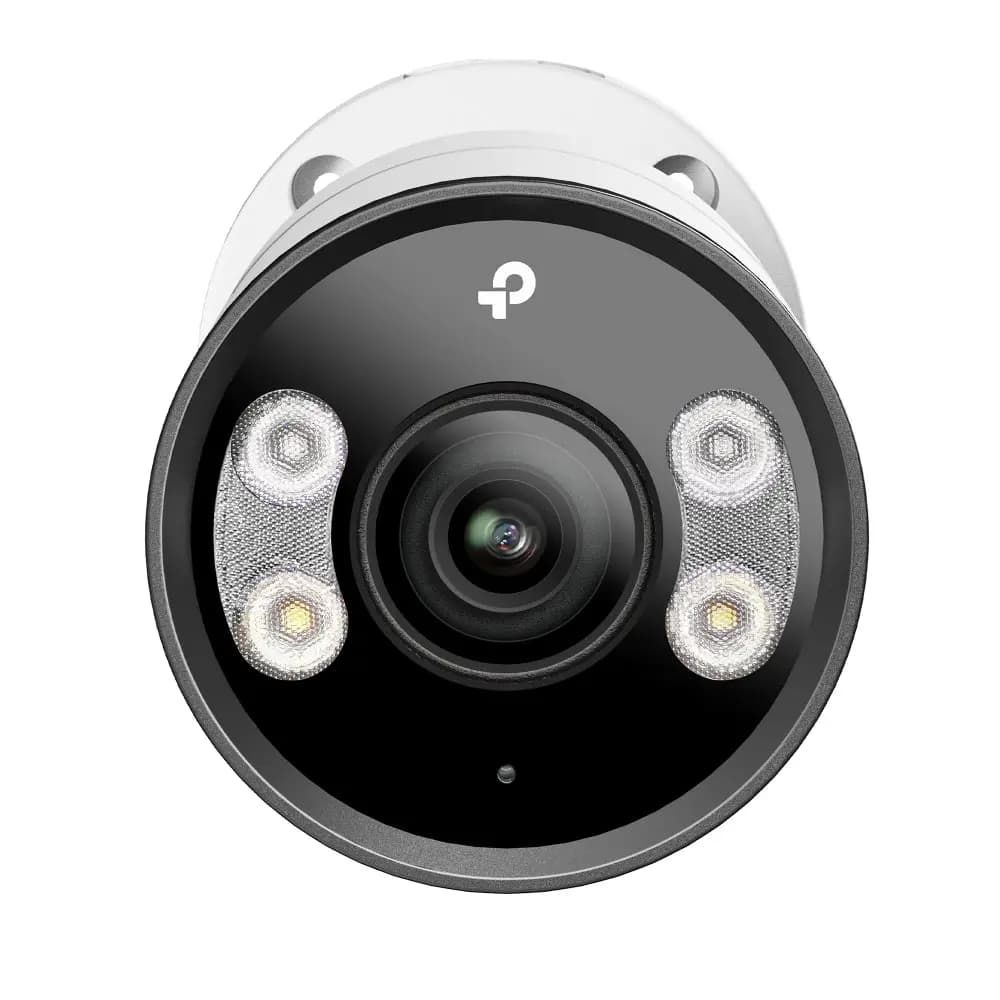

VIGI InSight S345(4mm), TPLINK, Camera, 4MP Outdoor Full-Color Bullett1/2.7 CMOS,F1.6H.IP67,265+,2Way Audio,MicroSD up to 512

Image Sensor V1:
1/2.7” Progressive Scan CMOS

V1.20:
1/2.65” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 2.8/4/6 mm
Aperture F1.6
FOV V1:
• 2.8 mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
• 4 mm: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
• 6 mm: Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°

V1.20:
• 2.8 mm: Horizontal FOV: 101.2°, Vertical FOV: 57.9°, Diagonal FOV: 118.1°
• 4 mm: Horizontal FOV: 81°, Vertical FOV: 43.9°, Diagonal FOV: 96.39°
Lens Mount M12*P 0.5
DORI Distance • 2.8 mm
Detect: 64 m (210 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 6 m (20 ft)

• 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

• 6 mm
Detect: 120 m (394 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identify: 12 m (39 ft)
Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
Illuminator Type • 2× IR LED
• 2× White LED
Illuminator Distance 30 m (98 ft)
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2688 x 1520
Main Stream • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile*
H.265+ Main Stream Supported*
Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Rotation
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Prevent overexposure to infrared light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes (Built-in Microphone)
Audio Output Yes (Built-in Speaker)
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIF Yes
API Open Network Video Interface (Profile G/S/T)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X authentication
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Upload to FTP server
• Push Notifications
• Active Defence-Sound Alarm
• Active Defence-Light Alarm
• Email Alarm
• Send to Alarm Server
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Content • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Metal
Net Weight 0.525 Kg
Power Supply DC
• 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug
• Recommended Power Supply:T120100-2C1 (for EU Regions)

PoE
• 802.3af/at, class 0, Max. 10.7 W

ErP Information
• Power consumption in networked standby when all wired network ports are connected: 2.3 W.
Protection IP67
Product Dimensions (L x W x H) 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
