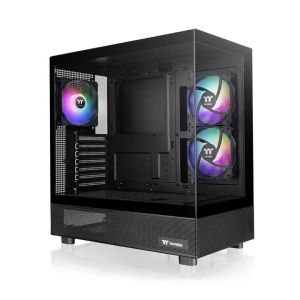

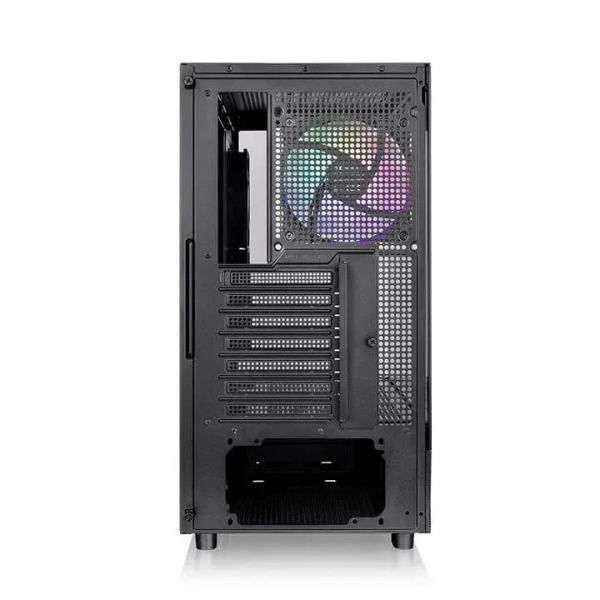

View 270 Plus TG ARGB, THERMALTAKE, CASE, E-ATX, 120mmx3, AIO 360mm, air 180mm, GPU 420mm, 2 x 3.5”, Type-C, USB 3.0x2, Audi

Series: View
Case Type: Mid Tower

Dimension (H x W x D):
456 x 230 x 454 mm (18 x 9.1 x 17.9 inch)

Net Weight:
6.35 kg / 14 lbs

Panel:
Tempered Glass x 2

Color:
Black

Material:
SPCC

Cooling System

Right (intake): 2 x 120mm ARGB Lite fan (1000rpm, 22.3 dBA)
Rear (exhaust): 1 x 120mm ARGB Lite fan (1000rpm, 22.3 dBA)

Drive Bays

2 x 3.5”, 1 x 2.5”
or 2 x 2.5”

Expansion Slots: 7

Motherboards

6.7” x 6.7” (Mini ITX)
9.6” x 9.6” (Micro ATX)
12” x 9.6” (ATX)
12” x 13” (E-ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1
USB 3.0 x 2
HD Audio x 1

PSU:
Standard PS2 PSU (optional)

Fan Support

Top: 3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right (M/B Side): 2 x 120mm, 1 x 120mm
Rear: 1 x 120mm, 1 x 140mm
Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm

Radiator Support

Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
Rear: 1 x 120mm

Clearance

CPU cooler max height: 180mm
VGA max length: 420mm
PSU max length: 220mm
