TP-Link, Archer AXE75, AXE5400 Tri-Band Wi-Fi 6E Router

AXE5400 Tri-Band – AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.†
Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.‡

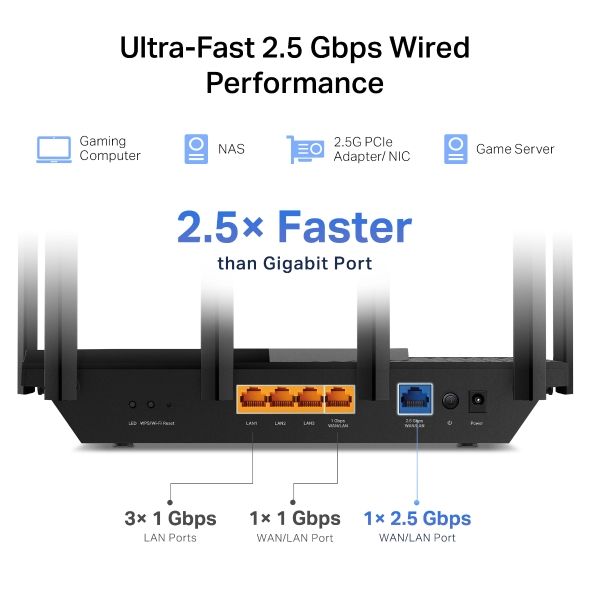

Ultra-fast 2.5 Gbps Wired Performance – Get 2.5 times faster wired performance with a 2.5 Gbps WAN/LAN port.§
Connect More Devices – OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.‡
Extremely-Low Latency – Enables more responsive gaming and video chatting.
EasyMesh-Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.△
HomeShield – Customise your home network with enhanced security and control.☆
Compatible with Alexa – Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Standards and Protocols IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AXE5400
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 2-3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
SECURITY

Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 6 GHz Guest Network,
1× 5 GHz Guest Network,
1× 2.4 GHz Guest Network
VPN Server OpenVPN Server
PPTP VPN Server
L2TP VPN Server
VPN Client Open VPN Client
PPTP VPN Client
L2TP VPN Client
WiFi Encryption WPA,
WPA2,
WPA3,
WPA/WPA2-Enterprise (802.1x)
HARDWARE

Ethernet Ports 1× 2.5 Gbps WAN/LAN
1× 1 Gbps WAN/LAN
3× 1 Gbps LAN

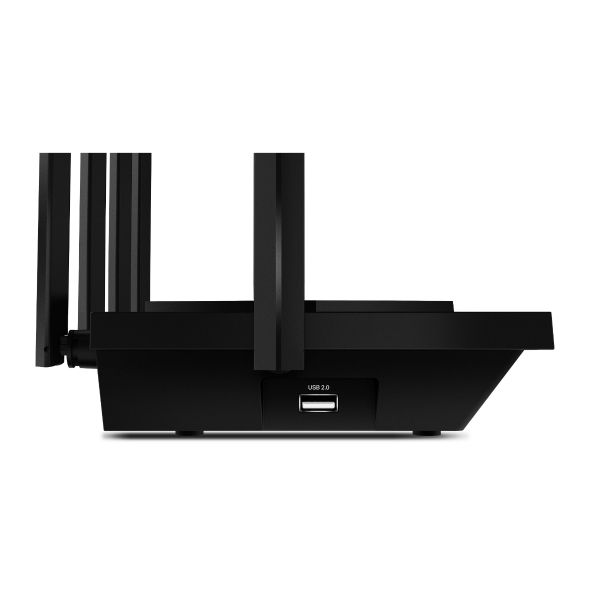

USB Support 1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button
Power 12 V ⎓ 2.5 A
SOFTWARE

Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
EasyMesh Compatible with EasyMesh
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Features Tether App
Webpage
OTHER

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DNS
DNS
• Port: 53   Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 30001   Protocol: TCP
• Port: 20002   Protocol: UDP
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
TEST DATA

WiFi Transmission Power FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)
CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)
WiFi Reception Sensitivity 2.4 GHz:
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
5 GHz:
11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
6 GHz:
11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
PHYSICAL

Dimensions (W×D×H) 10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm)
Package Content Wi-Fi Router Archer AXE75
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
