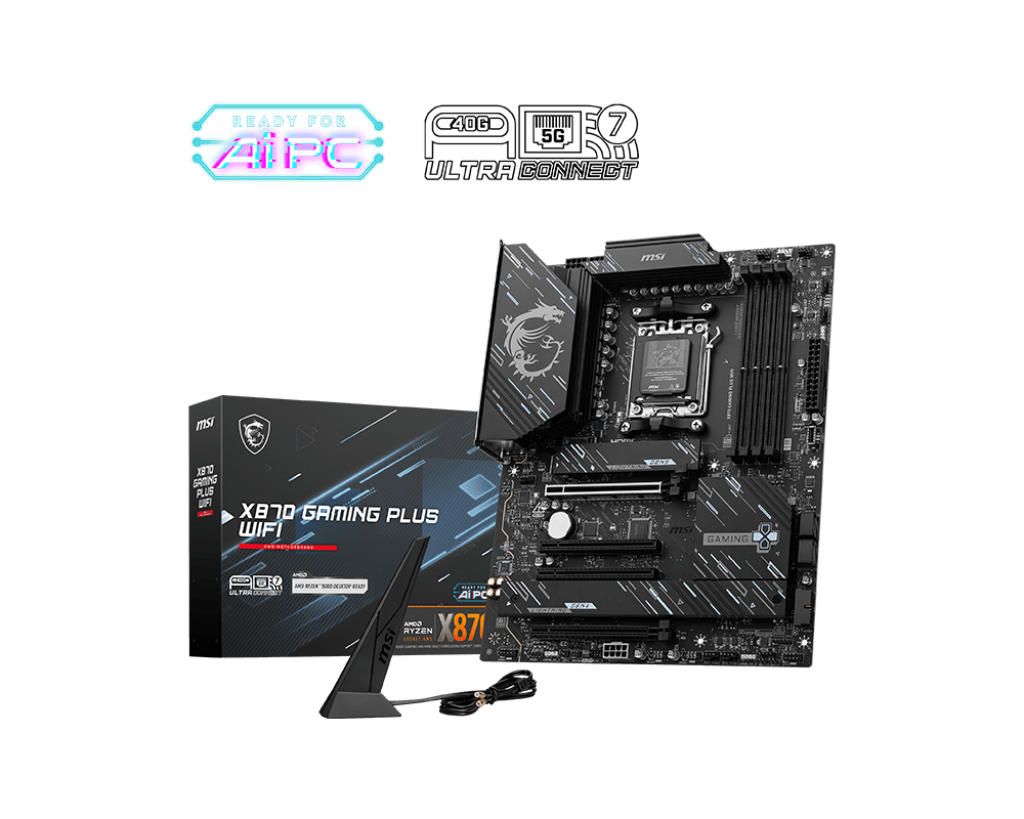

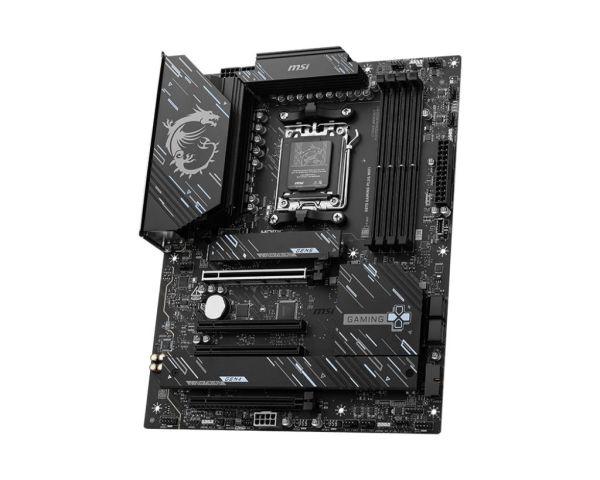

MSI Motherboard X870 GAMING PLUS WIFI sAM5 X870 4xDDR5 M.2 HDMI WiFi BT ATX

Towards:gaming (overclocking)
Form factor:ATX
Processor
For processors:AMD
Connection type:AM5
Processor compatibility:AMD Ryzen 9000/8000/7000
Chipset
Northbridge (chipset):AMD X870
TPM module connector:ico-check
RAM
Connector type:DDR5
DDR5:4 slots
Maximum clock frequency:8200 MHz
Maximum memory capacity:256 GB
Video settings
Graphical interface:PCI-E x16 4.0
PCI-E x1 3.0
PCI-E x16 5.0
HDMI output:ico-check
DisplayPort:ico-check
Audio settings
Audio chip:Realtek ALC897
Sound:7.1
Connecting drives
Connection interface:SATA 3
M.2
Software RAID support:ico-check
SATA3 (6 Gbit/s):4 ports
Network interfaces
LAN (RJ-45):5 Gbps
Number of LAN ports:1
LAN controller model:Realtek 8126VB
Wi-Fi module:ico-check (7 802.11 a/ b/ g/ n/ ac/ ax/ be)
Bluetooth:ico-check
Connection connectors
USB 2.0:8 pcs (4 rear, 4 front)
USB 3.2 Gen 1:4 /(2 rear Type-A, 2 front Type-A)
USB 3.2 Gen 2:3 /(2 rear Type-A, 1 front Type-C)
M.2 connector:3
Additionally
Features:Clear CMOS button
EZ Debug LED /x4
Support for Windows 10 64-bit
Flash BIOS Button
Equipment:SATA Cable /x2
Quick guide
User Manual
Wi-Fi Antenna
EZ M.2 Clips
Tuning Controller
Cable Stickers
Shout-out Flyer
EZ M.2 Clip Remover
1 to 2 EZ Conn-Cable
Physical
Dimensions (HxW):243.84 x 304.8 mm
Gross dimensions
Width:270 mm
Height:70 mm
Length:350 mm
Weight:2.00 kg
Volume:0.0066 m3
