AIWA HE-950BT

Specifications

Model: SOUNDBAR 2.0, HE-950BT
Output Power: 60W
Connectivity: AUX, BLUETOOTH 5.3, OPTICAL, USB

Product Usage Instructions

Setup

Unbox the product and check all contents against the packaging list.
Place the soundbar in the desired location near the TV or entertainment setup.
Connect the power adapter to the soundbar and plug it into a power outlet.
For audio input, choose between AUX, BLUETOOTH, OPTICAL, or USB based on your preference.

Bluetooth Pairing

Turn on the soundbar and put it in Bluetooth pairing mode.
On your Bluetooth-enabled device, enable Bluetooth and search for available devices.
Select “HE-950BT” from the list of available devices to pair.
Once paired successfully, you can stream audio wirelessly to the soundbar.

FAQ

Q: What is the weight and dimensions of the product?

A: The soundbar weighs 3 kg and has dimensions of 102.2 x 13 x 8.5 cm.

Q: How many connectivity options does the soundbar have?

A: The soundbar offers multiple connectivity options including AUX, BLUETOOTH 5.3, OPTICAL, and USB.

SOUNDBAR 2.0, 60W, AUX , BLUETOOTH 5.3 , OPTICAL , USB, HE-950BT
FEATURES

Luxury 2.0 ch Sound bar with ultra slim 45 mm height
Powerful and low distortion digital amplifier with 60W RMS output (@10% THD)
Full dynamic range: 4 x 2″ and 2×1,5″ high frequency drivers
Optical in, USB Port for direct Playback
HDMI-ARC (Audio Return Channel) Input for Digital Audio connection from TV
AUX INPUT 3.5mm Stereo Jack (Aux Cable included with 3.5mm stereo plugs) Intelligent Power Supply with Auto Power-Off system to save energy(15 minutes)
HDMI ARC and AUX IN can auto power on
Bluetooth compatibility: V5.3 (Wireless range: 10m or 30Ft.)
Wireless streaming from all mobile devices via Bluetooth audio receiver (V5.3 compatible) Futuristic design ergonomic Wireless Remote Controller included
DSP (Digital Signal Processor) with 4 audio modes (News, movie, music and night)
LED Status/Source Multi-color indicators for discreet simplicity
Under-TV shelf or wall mountable (Wall mount kit included)
AC Power 100-240V~, 50/60Hz
Accessories included: AUX Cable (3.5mm~3.5mm), Wall Mount Kit,Remote control, Aiwa brand 2 alkaline batteries
Dimensions: 90 X 4,.5 X 8.6 cm
Weight: 2.14KG

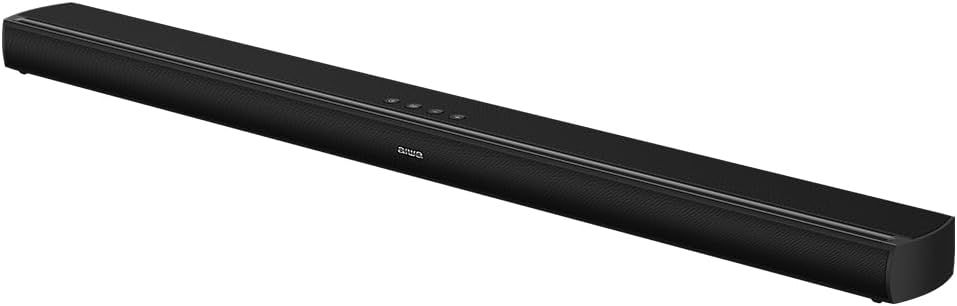

aiwa-HE-950BT-Sound-Bar-2.0 60W-fig-1
